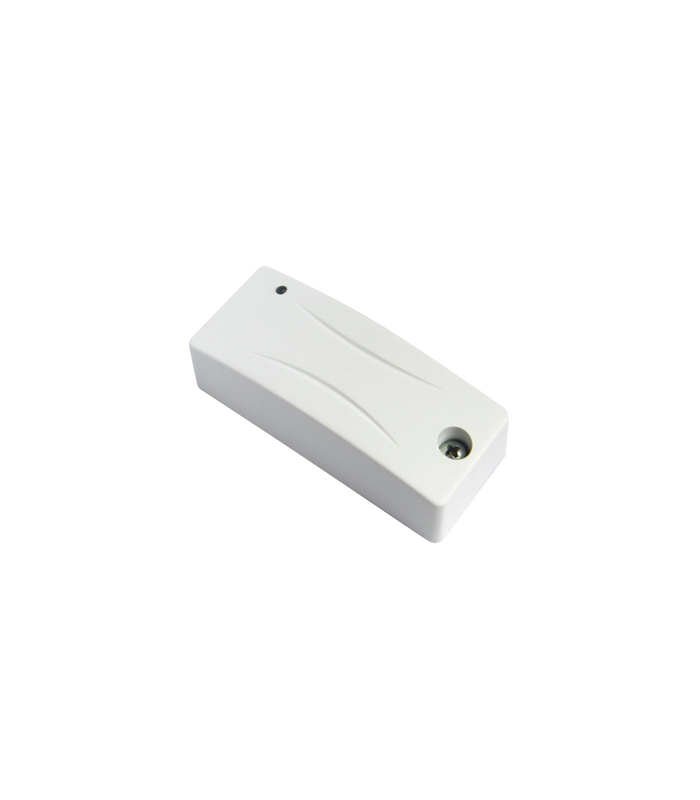

Teknim TVSD-143 Impact Tilt Vibration Detector
Product Code: TVSD-143
Electronic G-sensor shock detector that simultaneously senses impact, angle change, and vibration. Installed at points susceptible to movement or drilling, such as safes, ATMs, and display cases. Powered by 8-15 V DC, draws 20 mA at rest; detects physical attack that motion detectors cannot see.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Operating Type | Impact, Tilt (Angle Change), Vibration |
| Sensor | Electronic G Sensor |
| Power | 8-15V DC |
| Quiescent Current | 20mA |
| Alarm Current | 50mA |
| Sampling Interval | 1000 Times per Second |
| Acceleration Sensitivity | 0.625mg |
| Contact Output | NC - 30VDC 50mA |
| Dimensions (mm) | 36 X 87 X 30 mm |
| LED Notification | Red (Alarm) |
