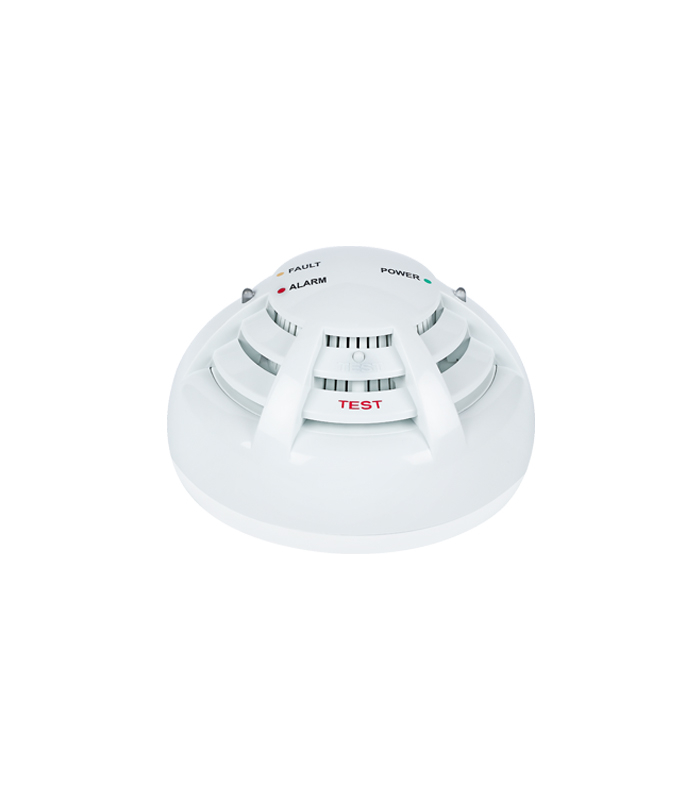

Teknim TSD-701 NC Output Natural Gas Detector
Product Code: TSD-701
Natural gas detector compliant with TS EN50194-1 standard; operates with MQ5 sensor and detects at LEL level. NC output is connected directly to the valve closure mechanism. Powered by 12-24 V DC; Type A device class indicates suitability for residential and commercial use.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Standard | wheeled devices must have |
| Operating Type | MQ5 Gas Sensor |
| Device Type | A |
| Gas Detection Level | LEL |
| Power | 12-24VDC |
| Quiescent Current | 12VDC - 100mA, 24VDC - 50mA |
| Start-up Time | 3 minutes |
| Contact Output Type | NC |
| Audible Notification | Continuous: Gas Alarm Intermittent: Sensor Fault |
| Sound Level | ≥85dB@1mt |
| LED Notification | Red: Alarm Yellow: Fault Green: Normal |
| Protection Class | IPX2D |
