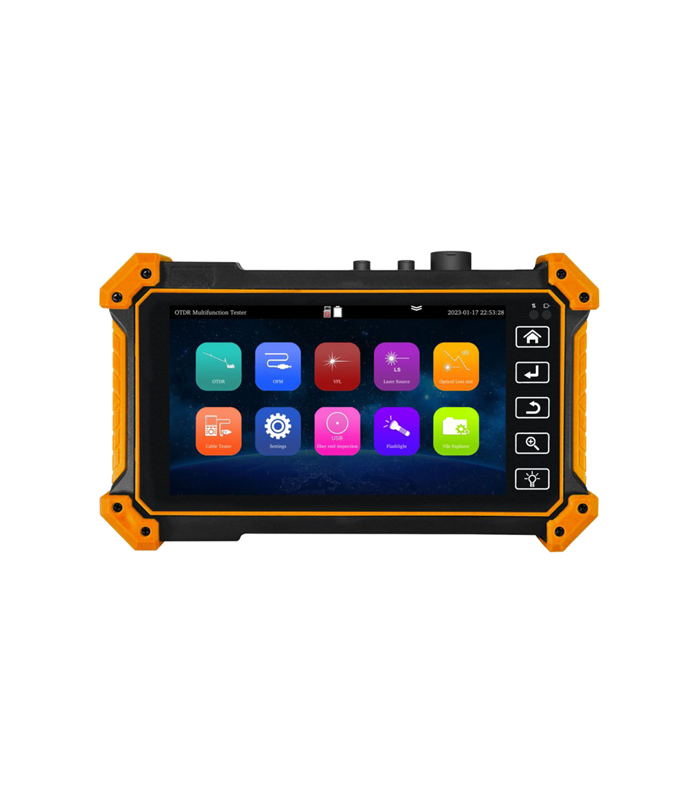

NovacomNVC-MOT51 Fiber OTDR Test Equipment
Product Code: NVC-MOT51
OTDR test equipment that measures fiber optic lines. By sending light pulses to the cable and reading the reflections that return, it shows at what meter distance along the line the break, attenuation, and excess loss occur. It is the only practical method that enables finding fault locations in kilometers of fiber without excavation.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Product Model | wheeled devices must have |
| Dimensions and Display | 5.55 inch OLED Touch Screen, 1280x720 Resolution |
| Power Output | 5V 1A Power Output |
| UTP Cable Test | Detect fault points at the near end, mid-span, and far end of RJ45 cable connector, and also capable of testing armored cables |
| Length Measurement | 3 km |
| Optical Power Meter | Wavelengths: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm, measurement range: -70 to +6dBm |
| Visual Fault Locator | 10 mW visual fault locator with 650 nm wavelength, emits red laser sources for testing multimode and singlemode fibers |
| Output Wavelength | 1550 |
| Output Power | 5dBm to 0dBm |
| Frequency | 270Hz/330Hz/1kHz/2kHz |
| External Power | Type-C 5V (2A) |
| Battery | 3.7V Lithium Ion Battery, 4000mAh |
| Rechargeable | Normal operating time is 6 hours after 3 hours of charging |
| Auto Shutdown | 5-30 (minutes) |
