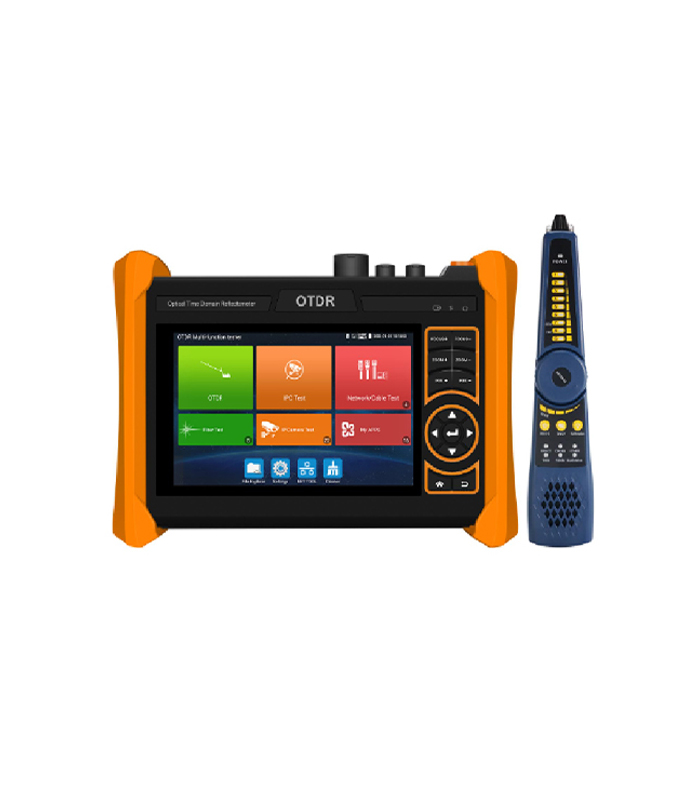

NovacomNVC-IPC-OTDR MT6510 CCTV Fiber Tester
Product Code: NVC-IPC-OTDR MT6510
Field equipment combining OTDR measurement with CCTV test function. After measuring the fiber line, the camera image can also be checked with the same equipment. In fiber backbone camera projects, it eliminates the need for technicians to carry two separate devices. Measurement results are stored in the equipment memory and can be attached to commissioning reports as evidence.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Dimensions and Display | 5.4 inch IPS touchscreen, 1920*1152 resolution |
| Network Connection Port | One 1000M LAN port, 10/100/1000M auto-adaptation |
| Wi-Fi | Built-in 2.4G WIFI, speed 150M, displays wireless camera image |
| H.265 Main Stream Test | H.265 and H.264 IP, 8K video display via main stream |
| CVBS Camera Test | 1 channel BNC input and 1 channel BNC loop output, NTSC/PAL |
| Image Zoom | x zoom, image magnification, screenshot, recording, viewing and recording and playback |
| RJ45 Cable TDR Test | 600M |
| VGA Input | 1280x1024/960/800/768/720P 60FPS, 1152x870P 60FPS, 1024x768P 60FPS, 800x600P 60FPS, 640x480P 60FPS |
| Power Output | 48V PoE/ 24V 2A/ 12V 3A / 5V 2A |
| UTP Cable Test | RJ45 cable connector remote end fault point, can also test protective cable |
| External Power Supply | DC 12V (2A) |
| Battery | 7.4V Li-ion Battery, 5200mAh |
| Rechargeable | Normal operating time is 11 hours after 2.5 hours of charging |
| Operating Temperature | -10℃ to +50℃ |
