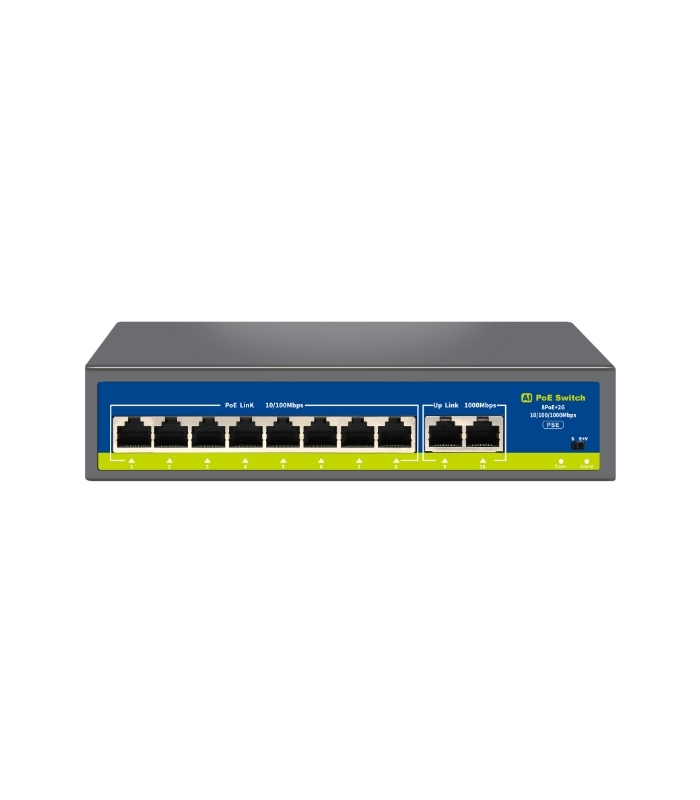

Novacom NVC-HIF0820GBL-C PoE Switch

NovacomNVC-HIF0820GBL-C PoE Switch

Product Code: NVC-HIF0820GBL-C
Switch

Switch carrying 8 x 10/100 Mbps PoE ports and 2 x gigabit RJ45 uplinks. Supports IEEE 802.3af (15.4 W) and 802.3at (30 W) standards, delivering a total of 120 W PoE power. Allows trade-off between distance and speed by switching between standard mode and extended mode.

Dealer priceSign in as a dealer for price and stock →
Teklif AlWhatsApp'la Sor

Technical specifications

Port Architecture8 x 10/100Mbps PoE ports (RJ45) 2 x 10/100/1000Mbps Gigabit uplink ports (RJ45)
PoE StandardsIEEE 802.3af (15.4W) IEEE 802.3at (30W)
PoE PowerMaximum total PoE output power: 120W
Operating ModesStandard Mode: Data transmission is provided between all ports. VLAN + Extend Mode: Isolation is provided between PoE ports
VLAN SupportVLAN isolation feature on PoE ports
Long Distance SupportLong-distance data transmission up to 250 meters when Extend mode is activated
Input Voltage110-240Vac
Input Frequency47-63Hz
Maximum Input Current2.5A
Supported ProtocolsIEEE802.3 , IEEE802.3u , IEEE802.3x , IEEE802.3ab
Transmission Speed10BASE-TX: 14,880 pps/port 100BASE-TX: 148,800 pps/port 1000BASE-TX: 1,488,000 pps/port
MAC Address2K
