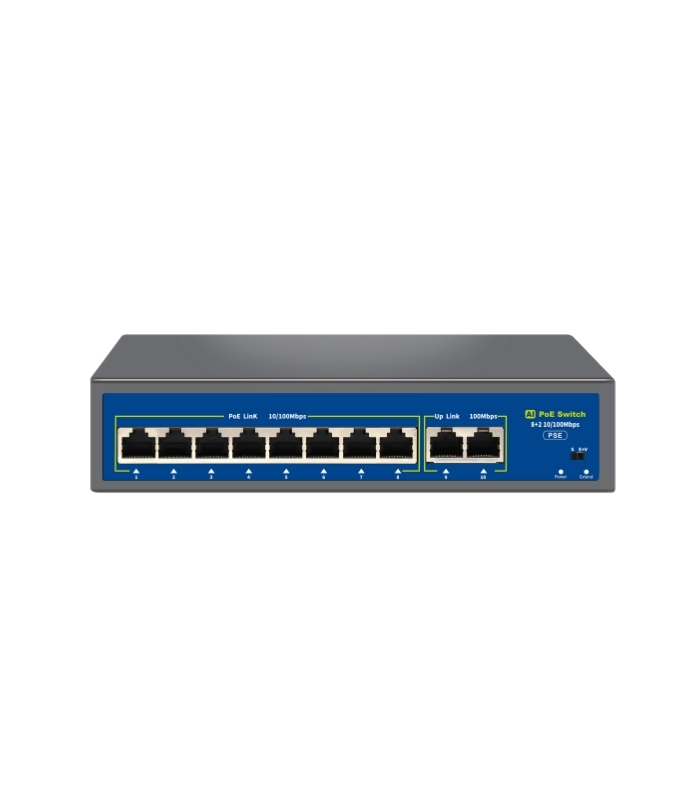

NovacomNVC-HIF0820FBL-C PoE Switch
Product Code: NVC-HIF0820FBL-C
8 PoE ports, uplink side 10/100 Mbps economical model. 52 V 2.3 A delivers total 120 W PoE power, allowing maximum 30 W output per port. Fast Ethernet uplink sufficient for combined stream of eight 2 MP class cameras; higher resolution requires gigabit version selection.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Port Architecture | 8 x 10/100Mbps PoE ports (RJ45) 2 x 10/100Mbps uplink ports (RJ45) |
| PoE Characteristics | IEEE 802.3af (15.4W) / IEEE 802.3at (30W) support |
| PoE Output Power | 120W (52V, 2.3A) |
| Feature | Maximum output power per PoE port: 30W |
| Transmission Distance | Data transmission and port isolation up to 250 meters |
| Network Performance | Intelligent data routing (non-blocking forwarding) IEEE 802.3x flow control (Full-duplex and Half-duplex supported) Automatic MDI/MDIX (automatic cable direction detection) |
| Supported Standards | IEEE 802.3, 802.3u, 802.3x, 802.3af/at |
| Network Environment | 10/100BASE-TX, CAT5 and above UTP cable |
| Switching Capacity | 1.6Gbps |
| Transmission Speed | 1.19Mpps |
| MAC Address | 2K |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -40°C ~ 85°C |
| Weight | 1.2 kg |
