Novacom

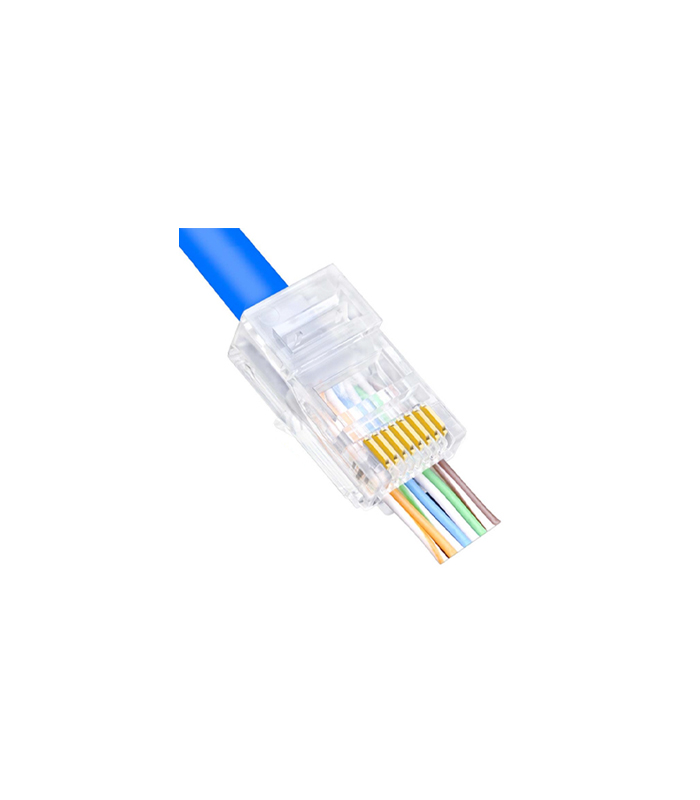

Novacom CAT6 RJ45 Pass-Through Jack Connector
Pass-through type CAT6 RJ45 connector. Since conductors extend out the end of the connector, pair sequence can be visually verified; sequence errors that are not visible in standard connectors are detected in this design before crimping. Excess conductors are trimmed during crimping.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Operating Current | 150V AC, 1.5A |
| Insulation Resistance | >50MΩ, 1000V/minute |
| Contact Resistance | <20mΩ |
| Cable-Plug Pull Strength | 20lbs (89N) min |
| Durability | 750 connection loops |
| Operating Temperature | -40°C ~ +115°C |
