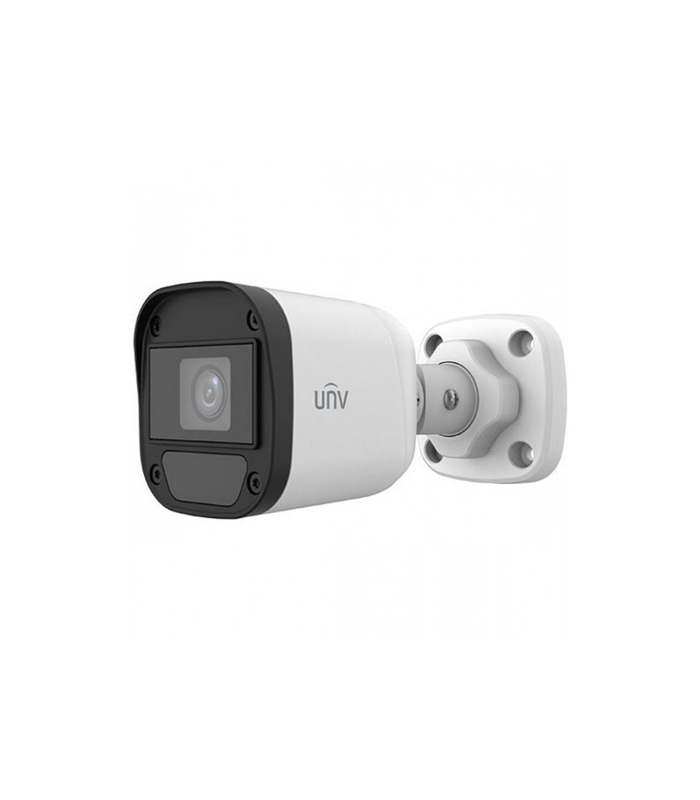

UniviewUNV UAC-B112-F28-W 2MP 2.8MM Mini Bullet Analog Camera
Product Code: UAC-B112-F28-W
Uniview's 2 MP mini bullet analog camera; 2.8 mm and 4 mm lens options fit the M12 mount. It gives a 90.5-degree horizontal view with the 2.8 mm lens and 80.2 degrees with the 4 mm lens. Its small body suits narrow mounting spots such as apartment entrances and shop fronts.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Sensor Pixel | 2MP |
| Sensor Size | 1/3" |
| Lens Objective | 2.8mm / 4.0mm |
| Lens Socket | M12 |
| Field of View | Horizontal (H): 90.5° / 80.2° Vertical (V): 49.6° / 40.7° Diagonal (D): 109.5° / 90.5° |
| Minimum Illumination | 0.02 lux (F2.0, AGC On) 0.00 lux (IR on) |
| IR Cut Filter (ICR) | Automatic switching |
| Supported Formats | TVI / AHD / CVI / CVBS |
| Pan Angle | Horizontal: 180° Vertical: 180° |
| OSD Configuration Menu | Easy to use, support in 11 languages |
| Protection | IP67 waterproof and dustproof design |
