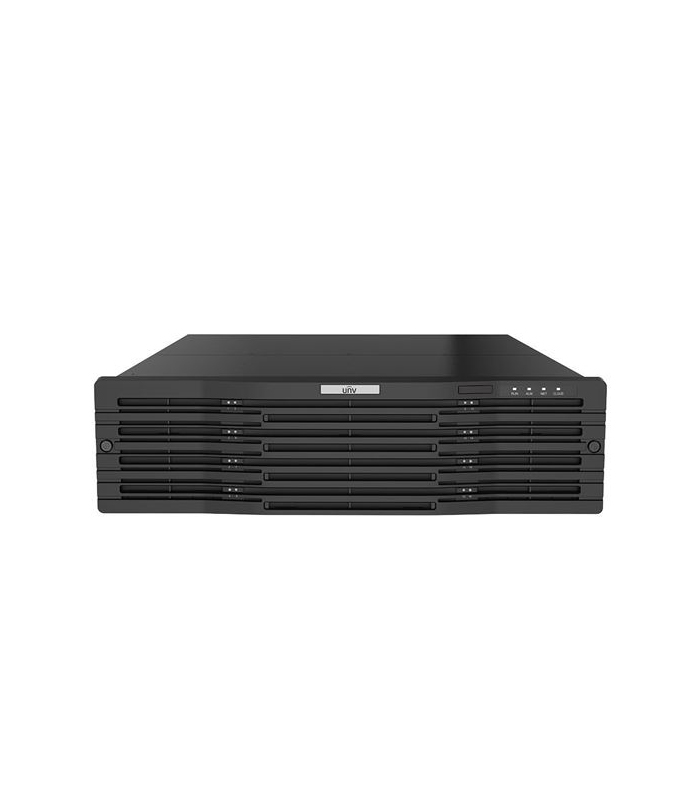

Uniview UNV NVR516-64 64 Channel NVR Recording Device

UniviewUNV NVR516-64 64 Channel NVR Recording Device

Product Code: NVR516-64
NVR

64-channel enterprise-class Uniview NVR. With 16 SATA disk slots, 1 eSATA and 2 miniSAS connections, it can be connected to storage expansion racks. ONVIF Profile S, G, C, Q and T compliance enables operation with a wide range of brands; Ultra 265 reduces bandwidth.

Dealer priceSign in as a dealer for price and stock →
Teklif AlWhatsApp'la Sor

Bu cihaza ne kadar kayıt sığar?

Estimate how many TB you need, or how many days your disk will hold. The result is a range, not an exact value.

Quiet scene5.2 TBwarehouse, corridor, archive
Busy scene16 TBentrance, cash desk, street

Calculated with a typical bitrate range of 2–6 Mbit/s (H.265, 15 fps). Total incoming bandwidth: 16–48 Mbit/s. Disk capacity uses the manufacturer’s TB (1 TB = 1000 GB). Real usage depends on scene activity; for an exact figure enter the bitrate shown on the recorder or take a 24-hour sample recording. The calculation uses the whole disk; if you want to keep part of it free, divide the result by (1 − margin), e.g. by 0.9 for a 10% margin.

Technical specifications

Channel Count64 Channel
Storage16 x SATA HDD (Max. 10 TB each) 1 x eSATA 2 x miniSAS
Video CompressionUltra 265 / H.265 / H.264
ONVIF ComplianceProfile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Bandwidth384Mbps incoming 384Mbps outgoing
User Support128 remote users
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Outputs2 x HDMI 1 x VGA 1 x Audio (RCA) 1 x BNC
Recording ResolutionsMax. 12 MP
Other FeaturesANR Technology RAID 0 / 1 / 5 / 6 / 10 / 50 / 60 support Hot Swap support 16 Channel Simultaneous Playback 24 x Alarm Input 8 x Alarm Output Corridor Mode
Screen Split3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
Inputs4 x RJ45 (10M/100M/1000M) 2 x 1000M SFP
Rear Panel4 x USB 3.0
Video AnalyticsFace Recognition Area Intrusion Boundary Intrusion Audio Detection Focus Blur Detection Scene Change Detection Auto Tracking
