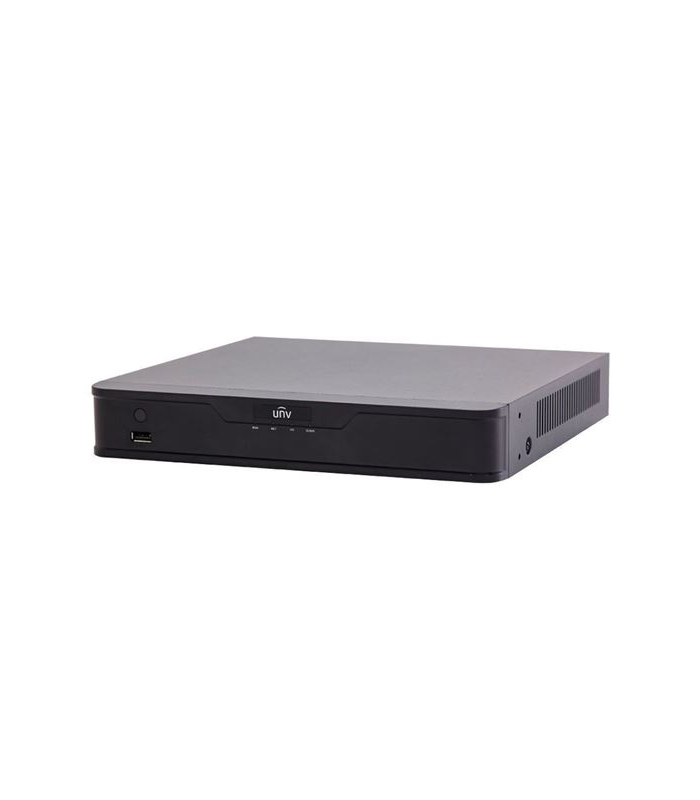

UniviewUNV NVR302-32S 32 Channel Ultra265 4K NVR Recording Device
32-channel Uniview NVR; records 4K with Ultra 265 compression. Ultra 265 produces even lower bit rate compared to H.265, reducing disk cost. It features two SATA disk slots (up to 10 TB each), 160 Mbps incoming bandwidth, and ONVIF Profile S/G/T compliance.
Bu cihaza ne kadar kayıt sığar?
Estimate how many TB you need, or how many days your disk will hold. The result is a range, not an exact value.
Calculated with a typical bitrate range of 2–6 Mbit/s (H.265, 15 fps). Total incoming bandwidth: 16–48 Mbit/s. Disk capacity uses the manufacturer’s TB (1 TB = 1000 GB). Real usage depends on scene activity; for an exact figure enter the bitrate shown on the recorder or take a 24-hour sample recording. The calculation uses the whole disk; if you want to keep part of it free, divide the result by (1 − margin), e.g. by 0.9 for a 10% margin.
Technical specifications
| Channel Count | 32 Channel |
| Storage | 2 x SATA HDD (Max. 10 TB) |
| Video Compression | Ultra 265 / H.265 / H.264 |
| ONVIF Compliance | Profile S, Profile G, Profile T |
| Bandwidth | 160Mbps (incoming), 64Mbps (outgoing) |
| User Support | 128 remote users |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Outputs | 1 x HDMI 1 x VGA 1 x Audio (RCA) |
| Recording Resolutions | Max. 8 MP |
| Other Features | ANR Technology 32 Channel Simultaneous Playback Corridor Mode Screen Split: 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 |
| Inputs | 1 x RJ45 (10M/100M/1000M) Rear Panel: 1 x USB 2.0, 1 x USB 3.0 Front Panel: 1 x USB 2.0 |
| Video Analytics | Face Recognition Area Intrusion Boundary Intrusion Audio Detection Focus Blur Detection Scene Change Detection Auto Tracking |
| Video Analytics Search | Face Recognition Behavior-based Search Person Counting |
