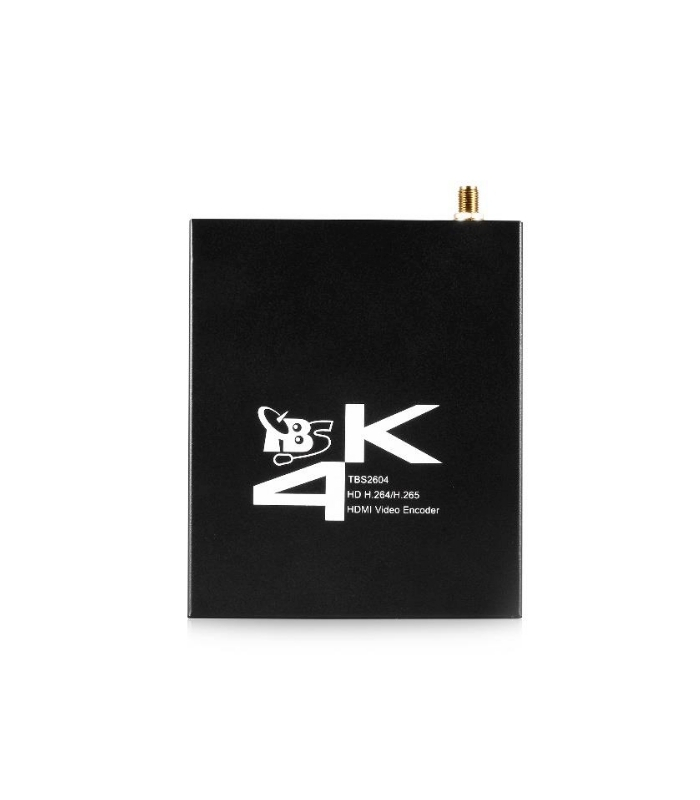

TBS-2604V2 HDMI TO IP Stream Video Encoder
Product Code: TBS-2604V2
Video encoder with 1x HDMI 1.4a input and gigabit Ethernet output. It supports line-in and HDMI audio inputs and encodes at resolutions from 4K down to 720p. The gigabit output prevents congestion of high bit-rate 4K streams on the network. The line-in audio input allows external microphones or mixers to be connected for sources without HDMI audio.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Video Input | 1x HDMI 1.4a |
| Audio Input | Line-in , HDMI Audio |
| Network Output | 1000Base-T Ethernet (RJ45) |
| Encoding Performance | 4K , 1080p , 720p and other resolutions |
| Encoding Profiles | H.264/H.265 (Main , Baseline , High) |
| Stream Broadcasting | Main Stream (H.264 MJPEG4 / H.265 HEVC) , Secondary Stream (H.264 MJPEG4) |
| Bitrate Range | 0.8Mbps - 30Mbps (CBR/VBR, FIXQP) |
| Broadcasting Protocols | HTTP, RTSP, RTP, RTMP, UDP |
| Power Input | 12V/2A |
