Rosslare

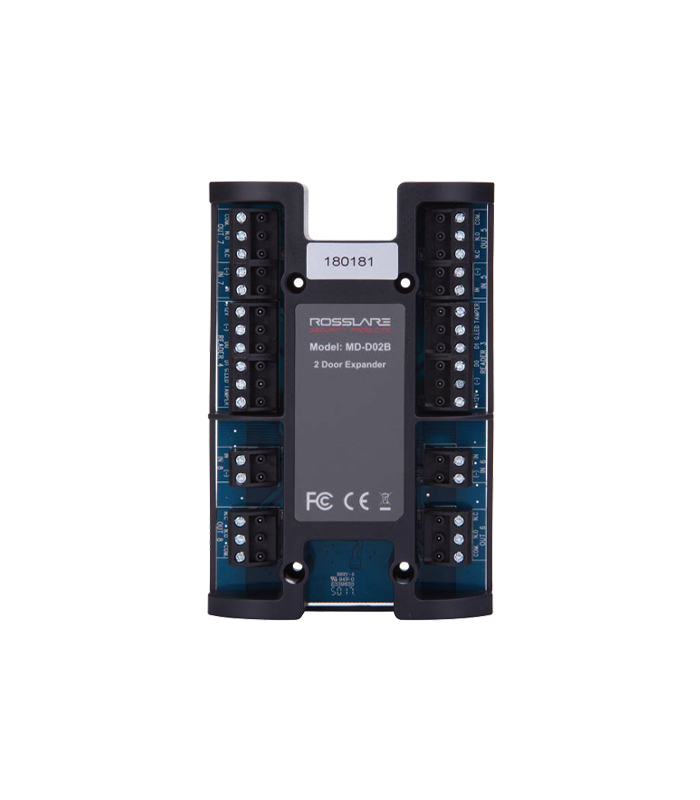

Rosslare MD-D02 2-Door Expansion Module
Product Code: MD-D02
Expansion module adding two additional doors to existing Rosslare panel. Features 4 inputs and 4 Form-C relay outputs with 5 A capacity; supplies readers with 12 V DC at maximum 300 mA. Economical way to expand the system to capacity limits instead of purchasing a new main panel.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Number of Inputs | 4 |
| Output Relays | 4 x 5 A, N.O., N.C. and COM contacts Form-C Relays |
| Input | 12V DC |
| Input Voltage | Maximum 5V DC |
| Reader Output Voltage | 12 VDC |
| Maximum Reader Current | 300 mA |
| LED Control Output | Open collector, active low |
| Power LED | Active when powered from power supply |
| Output LEDs | Four LEDs, each output LED active when an output relay is enabled and N.O. and COM contacts are short-circuited |
