Rosslare

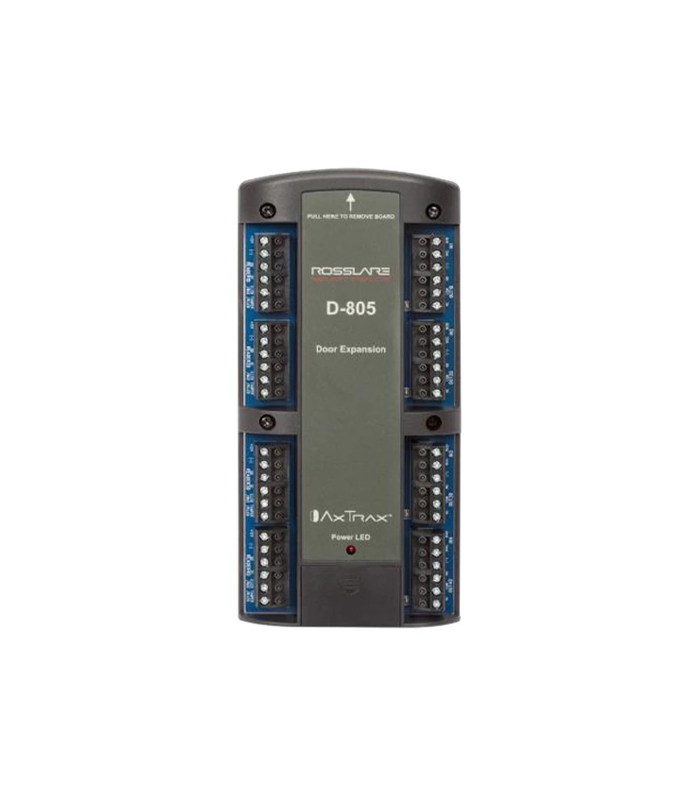

Rosslare D-805 Network Control Panel
Product Code: D-805
Rosslare main panel managing up to 100,000 users and 58 doors. With built-in TCP/IP connection and bidirectional data transmission, door statuses are monitored in real time. Provides direct support for up to 6 doors; 4 of these are Wiegand and 2 are OSDP readers with 2 inputs allocated per door.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Mini panel | 100,000 users management up to 58 doors |
| Network and Communication | Fast and reliable communication with bidirectional data transmission Internal TCP/IP network connection |
| Door and Reader Support | Support for up to 6 doors (4 Wiegand format and 2 OSDP readers) 2 inputs and 1 output per door |
| Additional Inputs and Outputs | 4 auxiliary inputs 2 auxiliary outputs |
| Expansion Slots | 1 internal expansion slot Support for 12 additional expansion cards via OSDP (R/S/D/P-805) |
