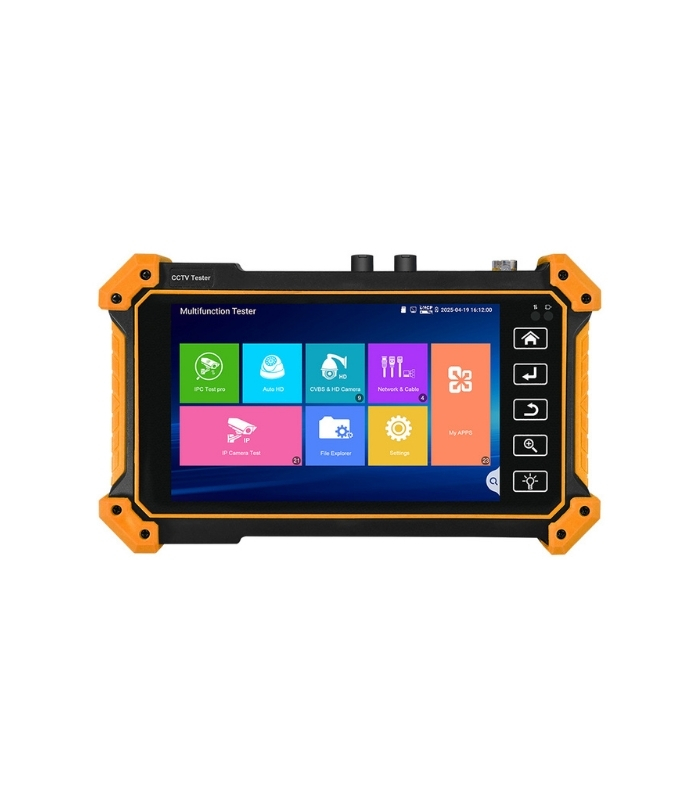

NovacomNVC-IPCV58C CCTV Tester
Product Code: NVC-IPCV58C
High-end test device sharing the same 5.5" OLED touchscreen as IPCV56. Features up to 8 MP analog and IP camera support, 4K video display, and HDMI input. Additional measurement and power output capabilities reduce the field team's need to carry separate multimeters.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Display | 5.5 inch OLED touchscreen, 1280x720 resolution |
| Supported Cameras | 8MP AHD, TVI, CVI, analog and IP cameras |
| Video Format | H.265 / H.264 - 4K video display |
| HDMI Input | 1x HDMI (4K @ 30FPS supported) |
| Coaxial Camera Recognition | Auto HD with automatic camera type and resolution recognition |
| Image Processing | 4x digital zoom, screenshot capture, video recording and playback |
| PTZ Control | Coaxial PTZ control, OSD menu invocation |
| PoE Power Output | 48V PoE, maximum 30W |
| DC Power Output | 12V / 3A camera power output |
| UTP Cable Test | RJ45 connection sequence and terminal fault detection |
| RJ45 TDR Test | Cable length, short circuit, open circuit test (max. 600 meters) |
| Digital Cable Tracer | BNC discrimination in mixed cables, network and telephone cable differentiation |
| Optical Power Meter | 850nm-1625nm range, -70 ~ +10 dBm measurement range |
| Visual Fault Locator | Fiber break and bend detection with 650nm 10mW laser (up to 10km) |
