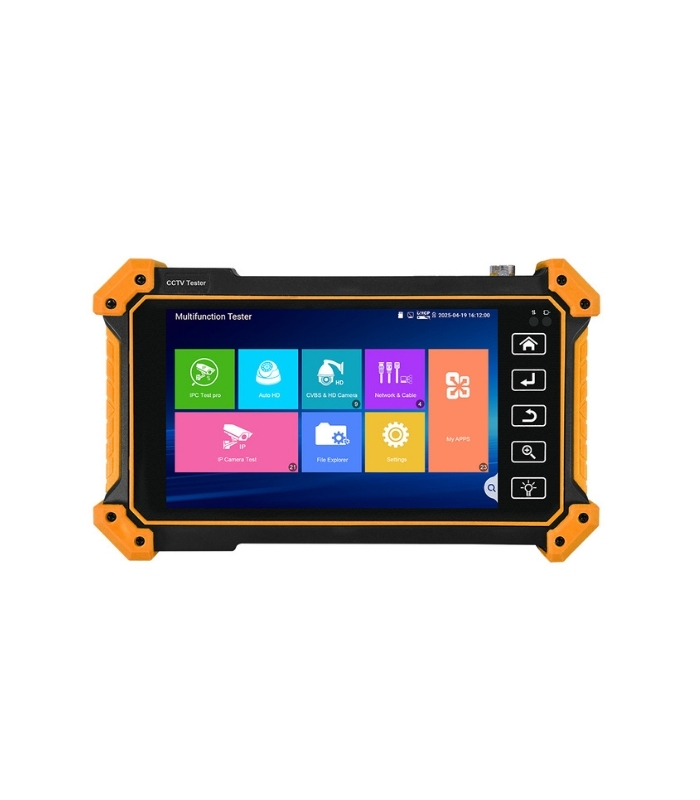

NovacomNVC-IPCV56 CCTV Tester
Product Code: NVC-IPCV56
5.5" OLED touchscreen CCTV test device; operates at 1280x720 resolution. Supports 8 MP AHD, TVI, CVI, analog, and IP cameras, displays H.265/H.264 4K video. HDMI input allows recording device output verification in the field. With PoE output powering the camera, testing can be performed and cable routing verified without carrying separate adapters in the field.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Display | 5.5 inch OLED touchscreen, 1280x720 resolution |
| Supported Cameras | 8MP AHD, TVI, CVI, analog and IP cameras |
| Video Format | H.265 / H.264 - 4K video display |
| HDMI Input | 1x HDMI (4K @ 30FPS supported) |
| Coaxial Camera Recognition | Auto HD application with automatic camera type and resolution recognition |
| Image Processing | 4x digital zoom, screenshot capture, video recording and playback |
| PTZ Control | Coaxial PTZ control and OSD menu invocation |
| ONVIF Support | Quick ONVIF login, image capture, test report generation |
| Power Output (DC) | 12V / 3A camera power output |
| PoE Power Output | 48V PoE, maximum 30W power support |
| UTP Cable Test | RJ45 cable connection sequence and fault detection (near-middle-far end) |
| RJ45 TDR Test | Cable length and short/open circuit testing (max. 600 meters) |
| Wi-Fi Feature | Built-in Wi-Fi + Hotspot creation, wireless camera viewing |
| Audio Input Test | 1 channel audio test (for microphone-supported cameras) |
