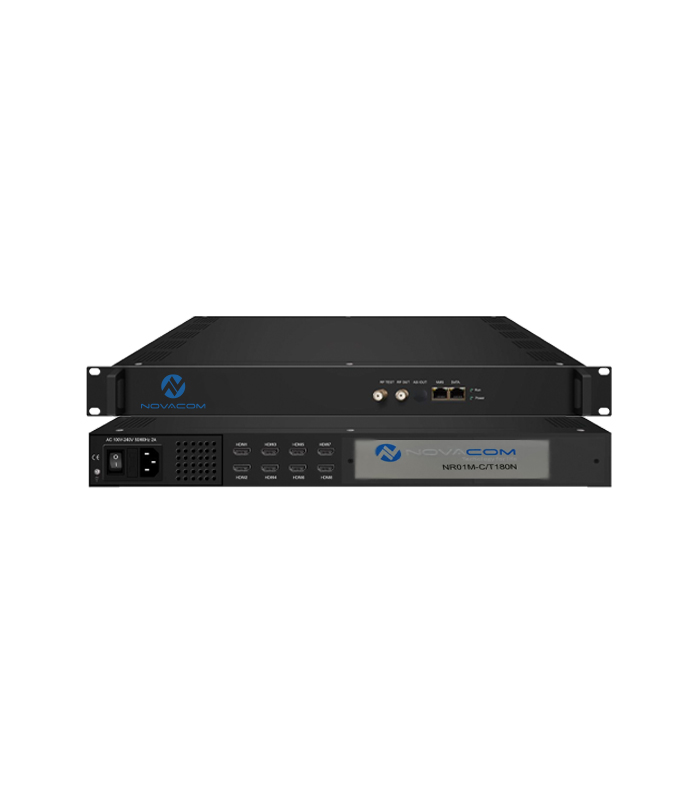

NovacomNR01M-C/T180 8 HDMI TO DVB-C/T Encoder Input
Product Code: NR01M-C/T180
DVB-C/T encoder with 8 HDMI and 128 IP inputs. Encodes eight separate sources in a single chassis, doubling channel capacity. Automatically detects and configures H.264 coding level according to source; facilitates simultaneous use of sources with different resolutions.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Input | 8 HDMI / 128 IP Input |
| Video Encoding | H.264 MP@L 3.0/3.1/4.0 Auto Detect And Configure |
| Audio Encoding | MPEG Layer 2, MPEG-2AAC |
| MER | |, ≥31 DB |
| RF Frequency | 142.5~858MHz |
| Output Level | 4 Channel DVBC / -14~ +6DBM |
| IP Output | 4 MUX CH MPTS, UDP / RTP |
