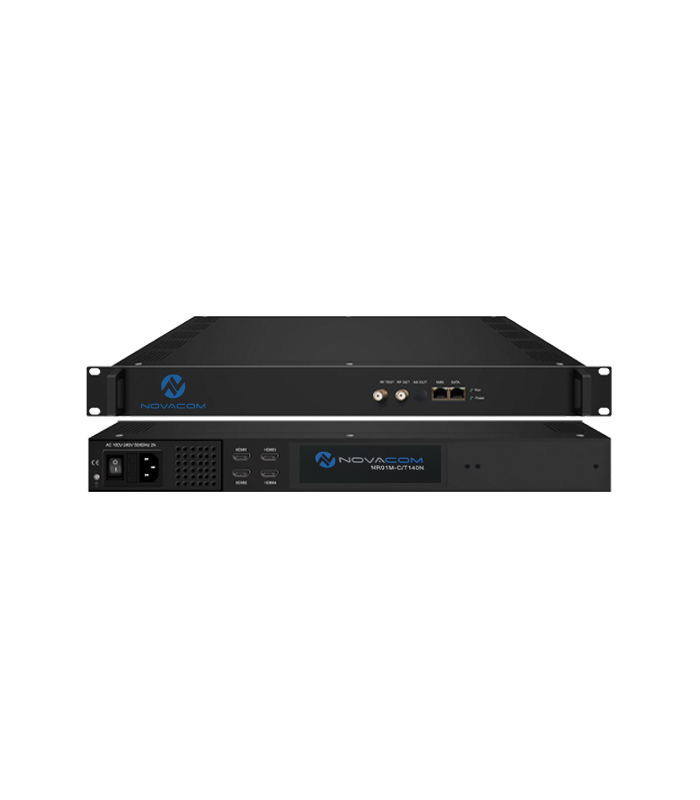

NovacomNR01M-C/T140 HD DVB-C/T Encoder Input
Product Code: NR01M-C/T140
DVB-C/T encoder with 4 HDMI and 128 IP inputs. Encodes HDMI sources with H.264 and distributes as cable or terrestrial broadcast. MER value exceeds 31 dB; this value indicates the quality of the modulated signal and determines the error margin at the receiver.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Input | 4 HDMI / 128 IP Input HDMI |
| Video Encoding | H.264 MP@L 3.0/3.1/4.0 Auto Detect And Configure |
| Audio Encoding | MPEG Layer 2, MPEG-2AAC |
| MER | |, ≥31 DB |
| RF Frequency | 142.5~858MHz |
| Output Level | 4CH DVBC / -14~ +6 DBM |
| IP Output | 4 Mux CH MPTS, UDP/RTP |
