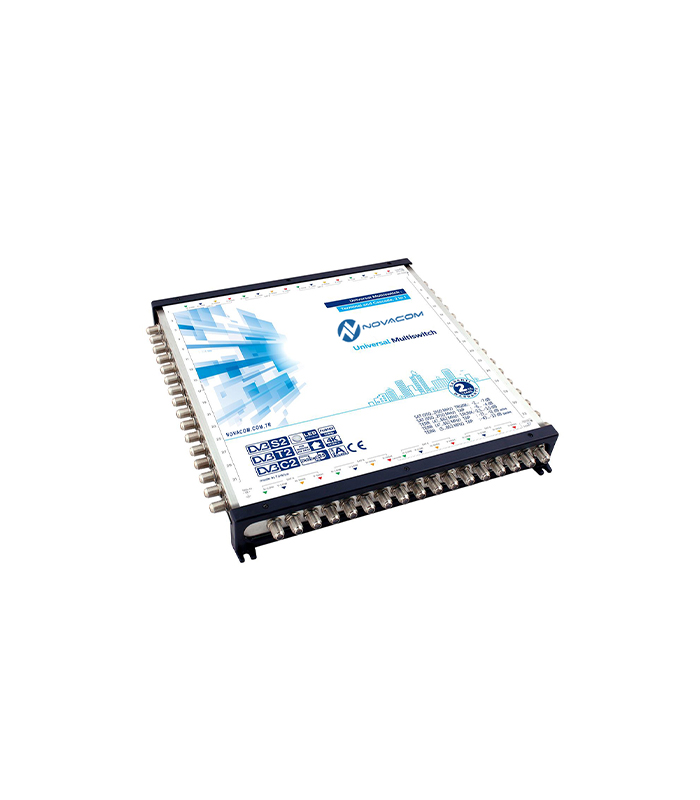

NovacomNMS-17/32P Multiswitch
Product Code: NMS-17/32P
32-output four-position cascading multiswitch. In cascaded installation, the remaining level must be calculated for devices downstream of this model; main trunk loss reaching -7 dB approaches the limit in two-stage cascades. Isolation is above 30 dB. The cascade output allows the same four satellite positions to be carried to a second column.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 16IF+1Terr |
| Auxiliary Outputs | 32 |
| Insertion Loss (dB) | -2…-7 |
| Side Output Loss (dB) | -6…-4 |
| Side Output Loss (dB) Active | -21…-12 |
| Side Output Loss (dB) Passive | -43…-33 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12 Vdc / 4000 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 31x31x4 |
