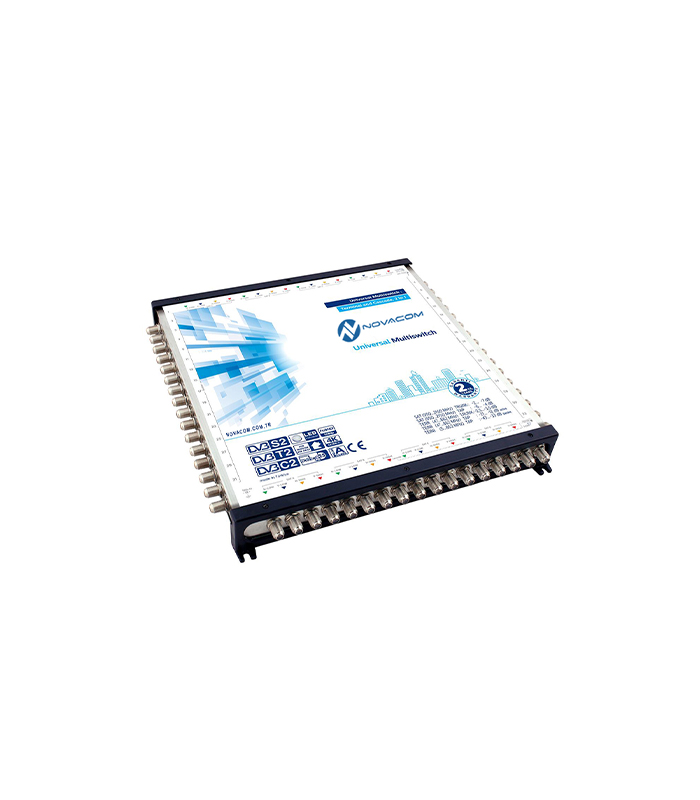

NovacomNMS-17/32 Multiswitch
Product Code: NMS-17/32
32-output multiswitch with 16 IF and 1 terrestrial input. Main trunk loss ranges from -2 to -7 dB, active branch output loss ranges from -21 to -12 dB. This scale, distributing four satellite positions to thirty-two apartments, is a structure frequently encountered in mixed-tenant office centers.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 16IF+1Terr |
| Auxiliary Outputs | 32 |
| Insertion Loss (dB) | -2…-7 |
| Side Output Loss (dB) | -6…-4 |
| Side Output Loss (dB) Active | -21…-12 |
| Side Output Loss (dB) Passive | -43…-33 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12 Vdc / 4000 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 31x31x4 |
