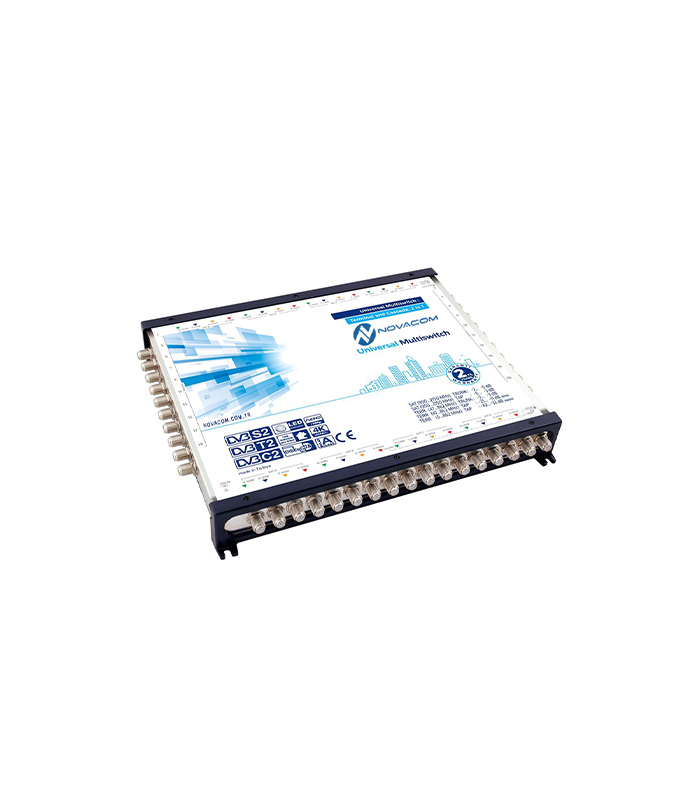

NovacomNMS-17/24P Multiswitch
Product Code: NMS-17/24P
24-output four-position cascading multiswitch. Active branch output loss ranges from -21 to -11 dB; the difference between active and passive operation depends on whether the device's own power supply is in circuit. When power is cut off, loss increases significantly.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 16IF+1Terr |
| Auxiliary Outputs | 24 |
| Insertion Loss (dB) | -2…-5 |
| Side Output Loss (dB) | -6…-3 |
| Side Output Loss (dB) Active | -21…-11 |
| Side Output Loss (dB) Passive | -42…-32 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12 Vdc / 4000 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 26x31x4 |
