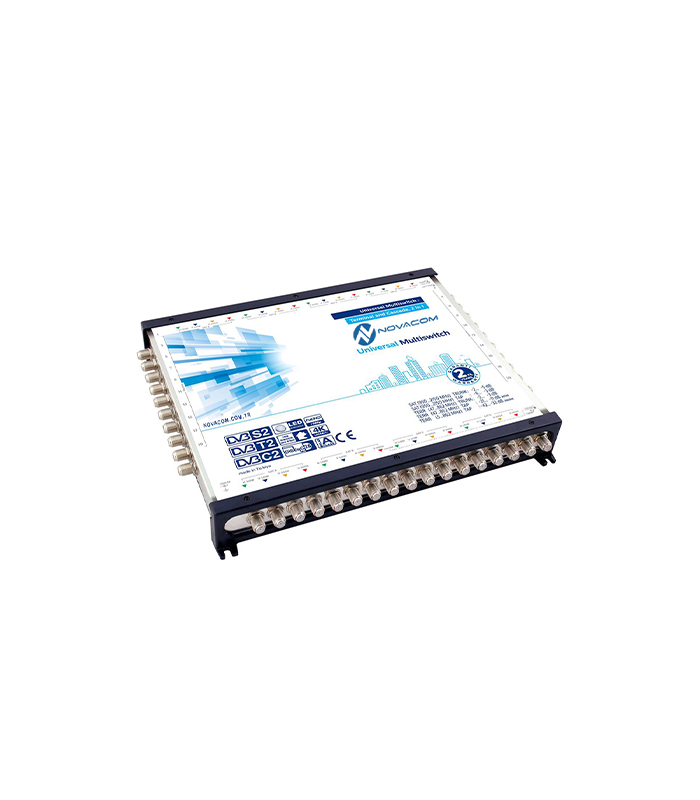

NovacomNMS-17/20P Multiswitch
Product Code: NMS-17/20P
20-output cascade multiswitch supporting four satellite positions. Main signal loss is between -2 and -5 dB, active side output loss is between -21 and -11 dB. The cascade structure allows the same four positions to be carried to a second column or block. Active operation requires the device's own power supply to be connected; loss increases when power is cut.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 16IF+1Terr |
| Auxiliary Outputs | 20 |
| Insertion Loss (dB) | -2…-5 |
| Side Output Loss (dB) | -6…-3 |
| Side Output Loss (dB) Active | -21…-11 |
| Side Output Loss (dB) Passive | -42…-32 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12 Vdc / 4000 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 26x31x4 |
