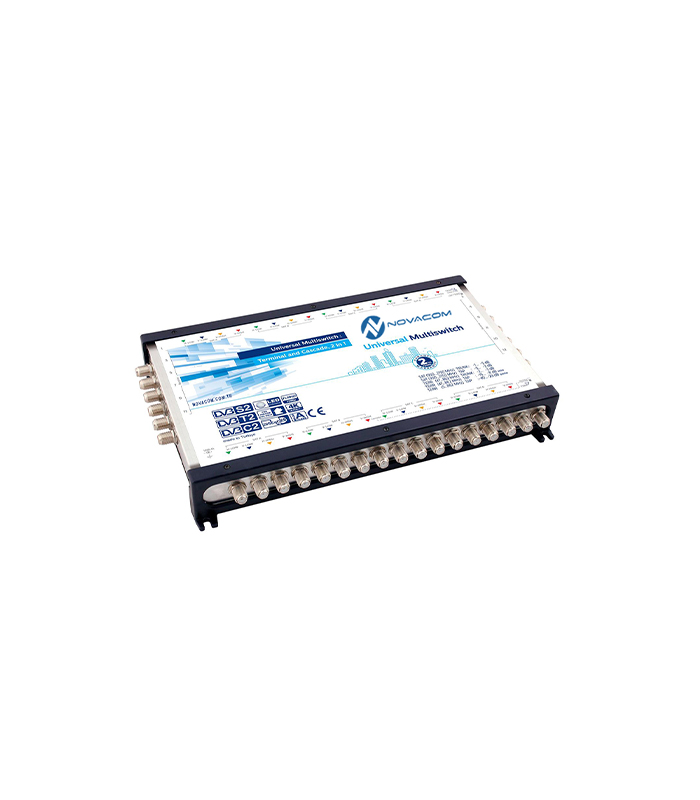

NovacomNMS-17/12S Finite Multiswitch
Product Code: NMS-17/12S
16 IF and 1 terrestrial input, 12-output finite multiswitch. Sixteen IF inputs allow simultaneous distribution of four satellite positions; the main difference from the 10-input series limited to two positions is this. Side output loss in active mode is between -19 and -8 dB.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 16IF+1Terr |
| Auxiliary Outputs | 12 |
| Insertion Loss (dB) | -1…-5 |
| Side Output Loss (dB) | -5…-3 |
| Side Output Loss (dB) Active | -19…-8 |
| Side Output Loss (dB) Passive | -40…-29 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 19x31x4 |
