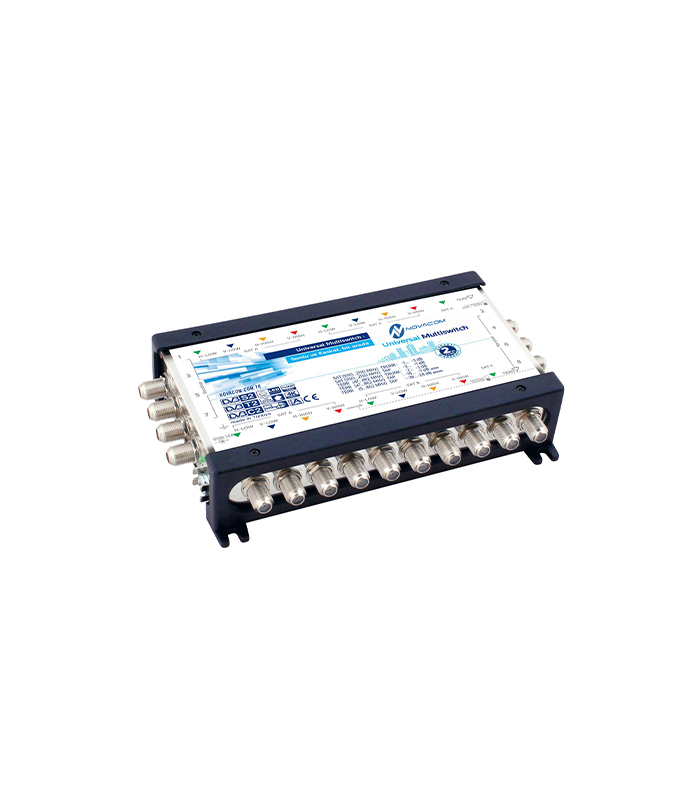

NovacomNMS-10/8S Finite/Cascade Multiswitch
Product Code: NMS-10/8S
9 IF and 1 terrestrial input, 8-output multiswitch. Distributes two satellite positions and terrestrial broadcast to eight units. Main signal loss remains between -1 and -2.5 dB; this is the lowest loss value in the series and this model is most suitable for use at the beginning of a cascade chain. Isolation is above 30 dB.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 8 |
| Insertion Loss (dB) | -1…-2,5 |
| Side Output Loss (dB) | -2….+2 |
| Side Output Loss (dB) Passive | -38…-28 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 11x13x4 |
