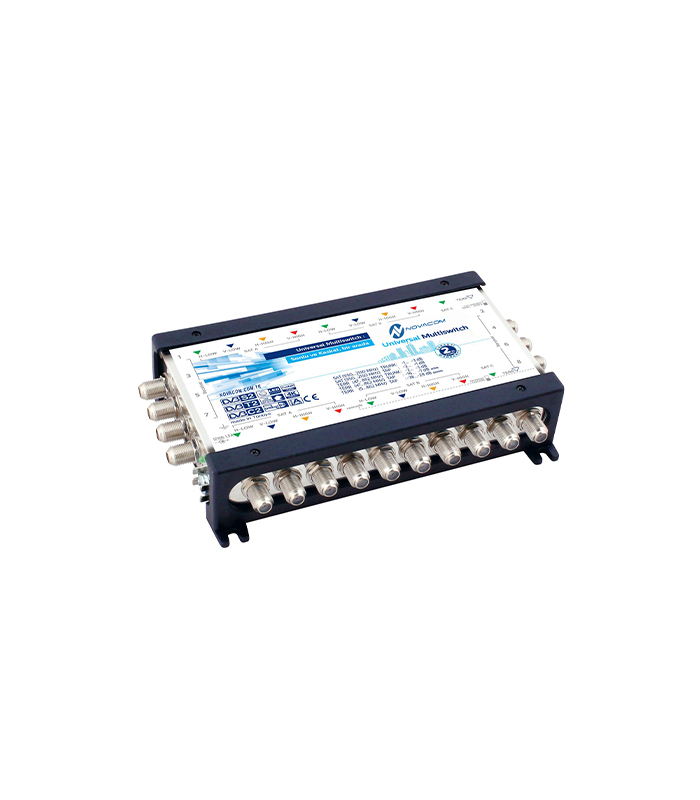

NovacomNMS-10/8P Finite/Cascade Multiswitch
Product Code: NMS-10/8P
8-output cascade-type multiswitch. The difference from the finite version is the use of a cascade output that will pass the main signal to the next device; multiple devices are chained along the column for tier-by-tier distribution. Main signal loss is between -1 and -2.5 dB.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 8 |
| Insertion Loss (dB) | -1…-2,5 |
| Side Output Loss (dB) | -2….+2 |
| Side Output Loss (dB) Passive | -38…-28 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 11x13x4 |
