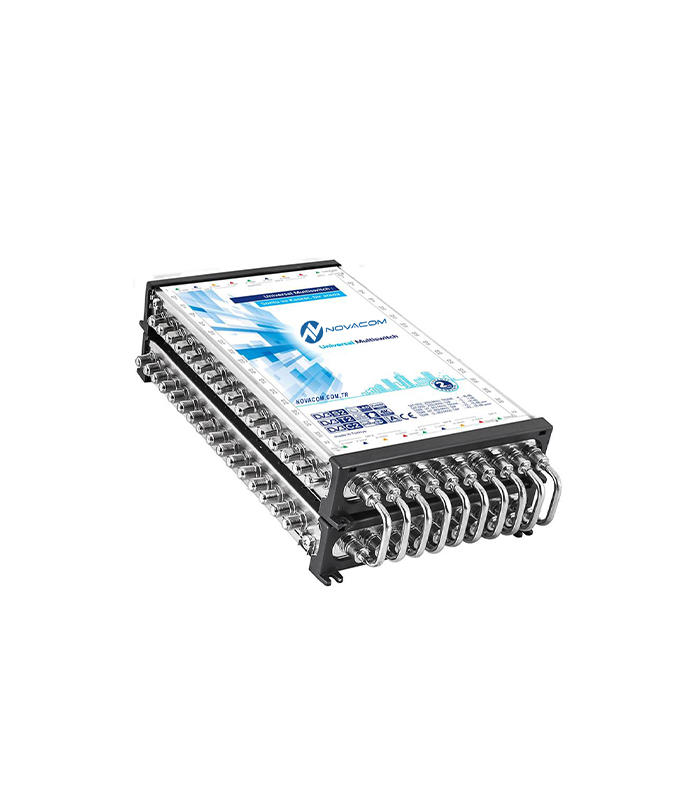

NovacomNMS-10/80S Finite Multiswitch
Product Code: NMS-10/80S
80-output (2x40) finite multiswitch. Main path loss extends to the -4 to -22 dB range; at this level, input signal amplification is mandatory. Used in residential complexes and multi-unit projects to feed a large number of units from a single distribution point. Spacing must be maintained above and below the unit in cabinet installation to prevent heat accumulation.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 80(2x40) |
| Insertion Loss (dB) | -4…-22 |
| Side Output Loss (dB) | -4…-2 |
| Side Output Loss (dB) Passive | -44…-36 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 358x190x83 |
