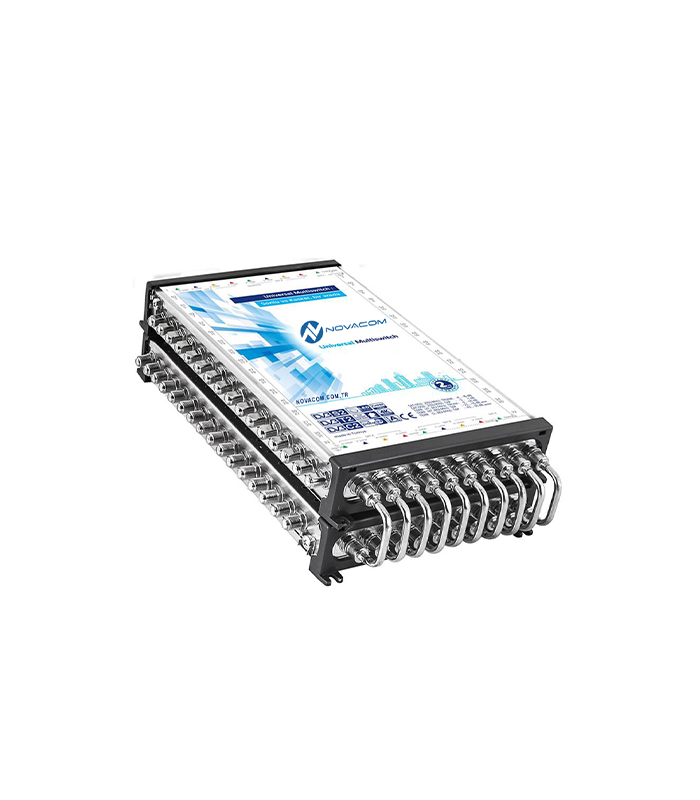

NovacomNMS-10/64P Multiswitch
Product Code: NMS-10/64P
64-output (2x32) cascade multiswitch. Main path loss ranges from -4 to -16 dB. For devices of this size, cascade use is meaningful only if sufficient amplification is available on the input side; otherwise, the second unit in the chain receives signals below usable level.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 64(2x32) |
| Insertion Loss (dB) | -4…-16 |
| Side Output Loss (dB) | -3…-1 |
| Side Output Loss (dB) Passive | -43…-35 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 320x190x83 |
