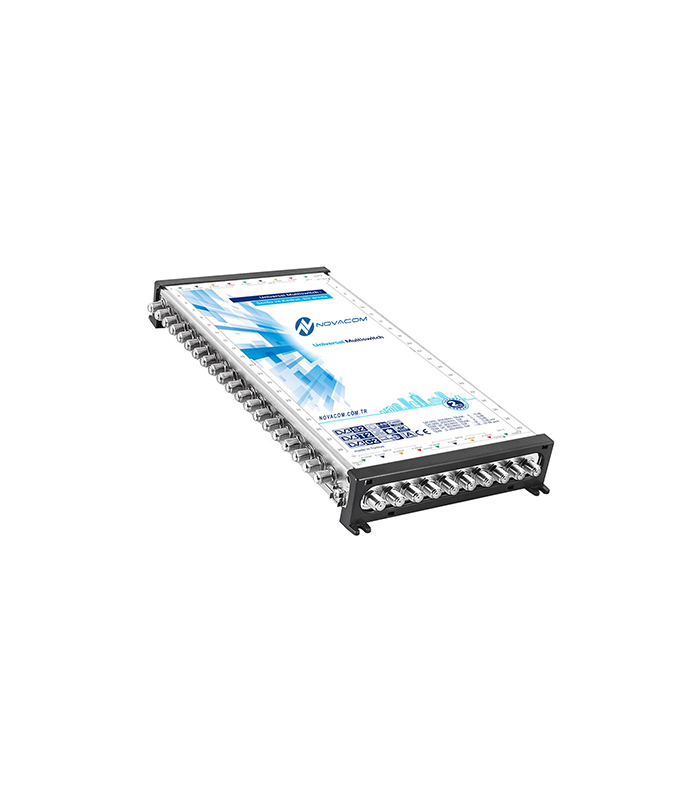

NovacomNMS-10/52P Finite Cascade Multiswitch
Product Code: NMS-10/52P
52-output cascade multiswitch. Loss values are identical to the finite version in the same housing; the only difference is the presence of the cascade output. Selecting the cascade version in projects with anticipated system growth facilitates adding a second unit later. The fifty-two-output housing reduces the number of units per column, thereby reducing maintenance points.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 52 |
| Insertion Loss (dB) | -3…-9 |
| Side Output Loss (dB) | -3…0 |
| Side Output Loss (dB) Passive | -38…-28 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 45x19x5 |
