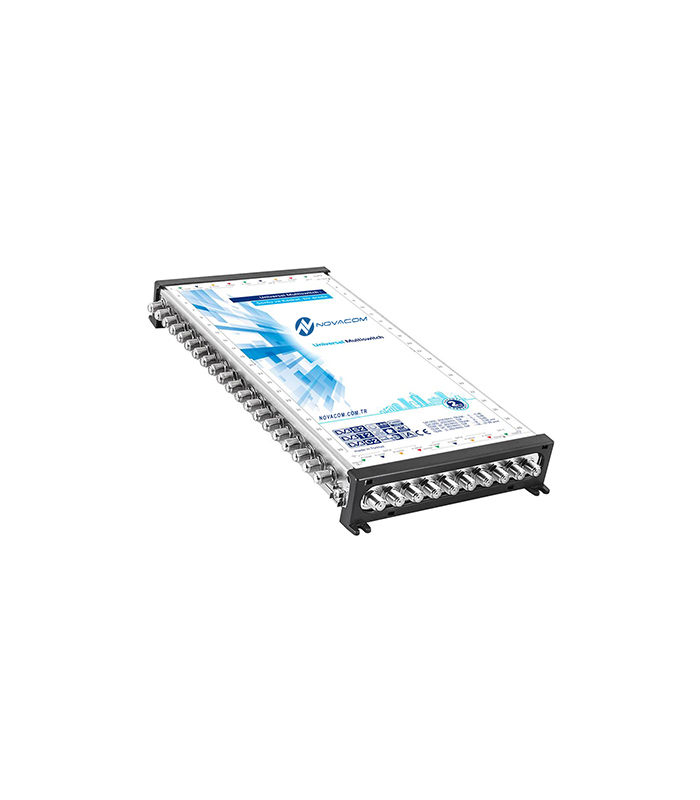

NovacomNMS-10/48S Finite Cascade Multiswitch
Product Code: NMS-10/48S
48-output finite cascade multiswitch. Main path loss ranges from -3 to -9 dB; passive branch output loss ranges from -38 to -28 dB. Used in forty-eight-unit single-column blocks; at this scale, central amplification and balanced cable length planning directly determine the configuration.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 48 |
| Insertion Loss (dB) | -3…-9 |
| Side Output Loss (dB) | -3…0 |
| Side Output Loss (dB) Passive | -38…-28 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 45x19x4 |
