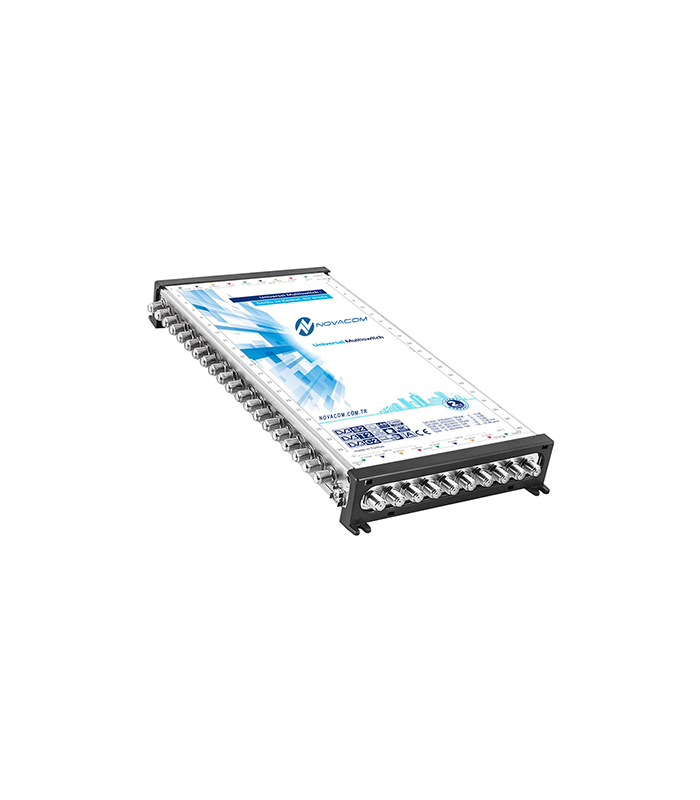

NovacomNMS-10/48P Finite Cascade Multiswitch
Product Code: NMS-10/48P
48-output cascade multiswitch. Main loss remains at maximum -9 dB; passive branch port loss is measured between -38 dB and -28 dB. The ability to feed forty-eight apartments and pass the remaining signal enables both wings of blocks to be fed from a single center point.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 48 |
| Insertion Loss (dB) | -3…-9 |
| Side Output Loss (dB) | -3…0 |
| Side Output Loss (dB) Passive | -38…-28 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 45x19x4 |
