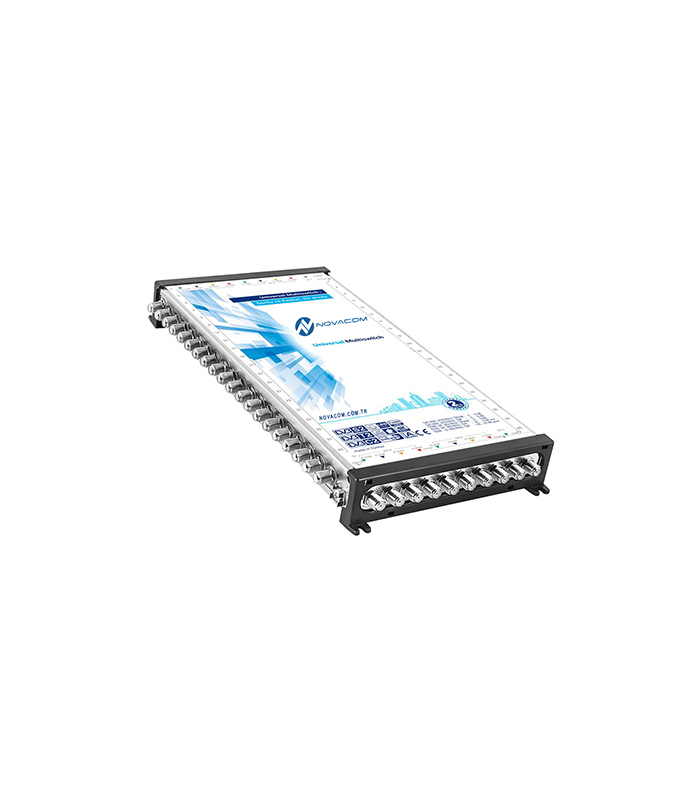

NovacomNMS-10/40S Finite Cascade Multiswitch
Product Code: NMS-10/40S
40-output finite cascade multiswitch. Main loss ranges from -2 to -11 dB; the level difference between first and last outputs increases. In tall buildings, signal levels at lower and upper floors must be measured separately, and floor-level equalization must be performed if necessary.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 40 |
| Insertion Loss (dB) | -2…-11 |
| Side Output Loss (dB) | -2…0 |
| Side Output Loss (dB) Passive | -38…-27 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 35.5x19x4 |
