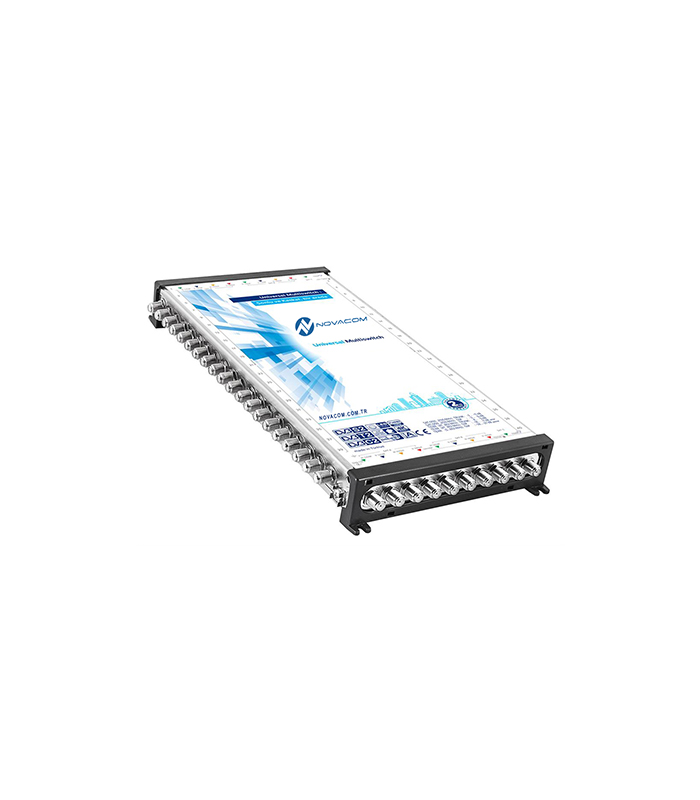

NovacomNMS-10/40P Finite Cascade Multiswitch
Product Code: NMS-10/40P
40-output cascade multiswitch. Main loss ranges from -2 to -11 dB. Using a forty-output device in cascade mode means that devices added downstream receive very weak signal; it is typically positioned as the first link in the chain.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 40 |
| Insertion Loss (dB) | -2…-11 |
| Side Output Loss (dB) | -2…0 |
| Side Output Loss (dB) Passive | -38…-27 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 35.5x19x4 |
