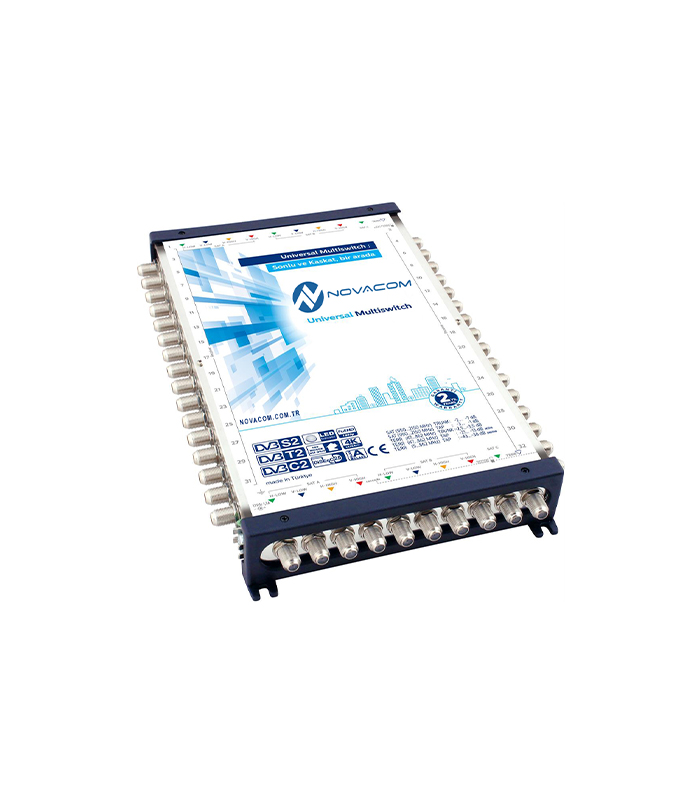

NovacomNMS-10/32S Finite Cascade Multiswitch
Product Code: NMS-10/32S
32-output finite cascade multiswitch. Main loss ranges from -2 to -7 dB, passive branch port loss is in the -43 to -38 dB range. At this loss level, signal amplification from the LNB becomes necessary in most installations; booster planning is mandatory from this model onwards.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 32 |
| Insertion Loss (dB) | -2…-7 |
| Side Output Loss (dB) | -3…-1 |
| Side Output Loss (dB) Passive | -43…-38 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 30x19x4 |
