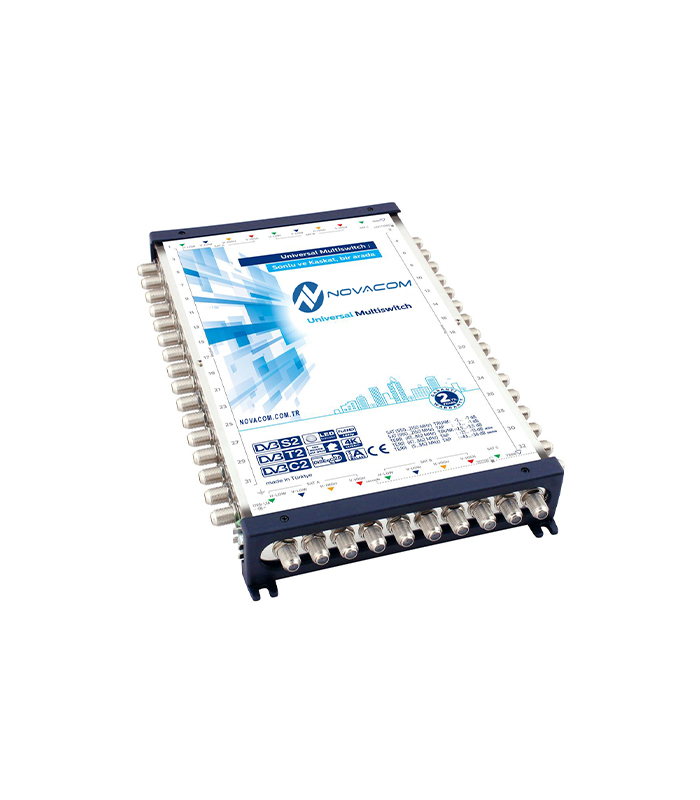

NovacomNMS-10/32P Finite Cascade Multiswitch
Product Code: NMS-10/32P
32-output cascade multiswitch. Main loss ranges from -2 to -7 dB; the input level of devices following this model in the chain drops significantly. Placement at the beginning of the chain and selection of smaller devices downstream is a general design rule.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 32 |
| Insertion Loss (dB) | -2…-7 |
| Side Output Loss (dB) | -3…-1 |
| Side Output Loss (dB) Passive | -43…-38 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 30x19x4 |
