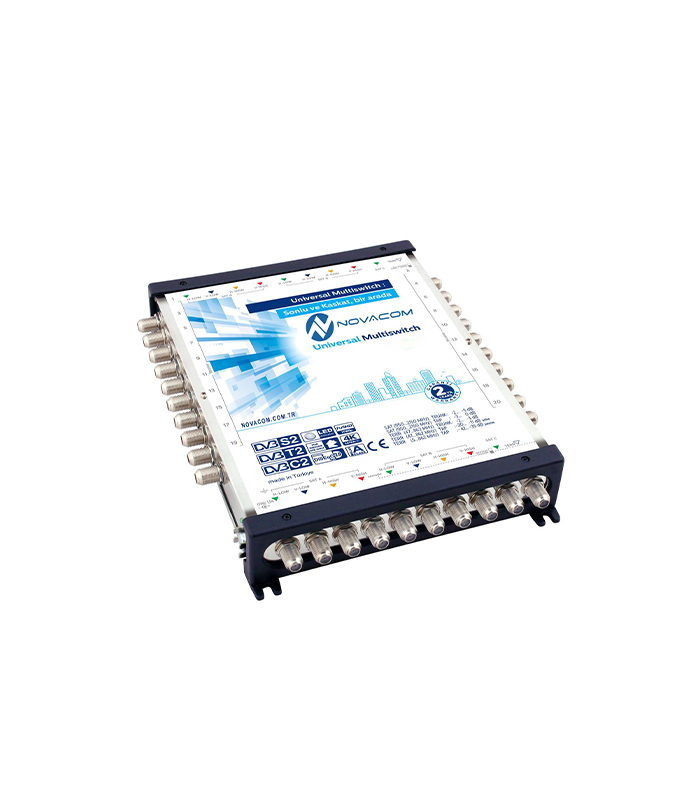

NovacomNMS-10/24S Finite Cascade Multiswitch
Product Code: NMS-10/24S
24-output finite cascade multiswitch; distributes two satellite positions and terrestrial broadcast. It is in the same loss class as the 20-output model. Using a single unit in twenty-four apartment blocks is more advantageous in terms of both cabling and loss compared to cascade-connecting two separate devices.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 24 |
| Insertion Loss (dB) | -2…-5 |
| Side Output Loss (dB) | -3…0 |
| Side Output Loss (dB) Passive | -42…-35 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 23x19x4 |
