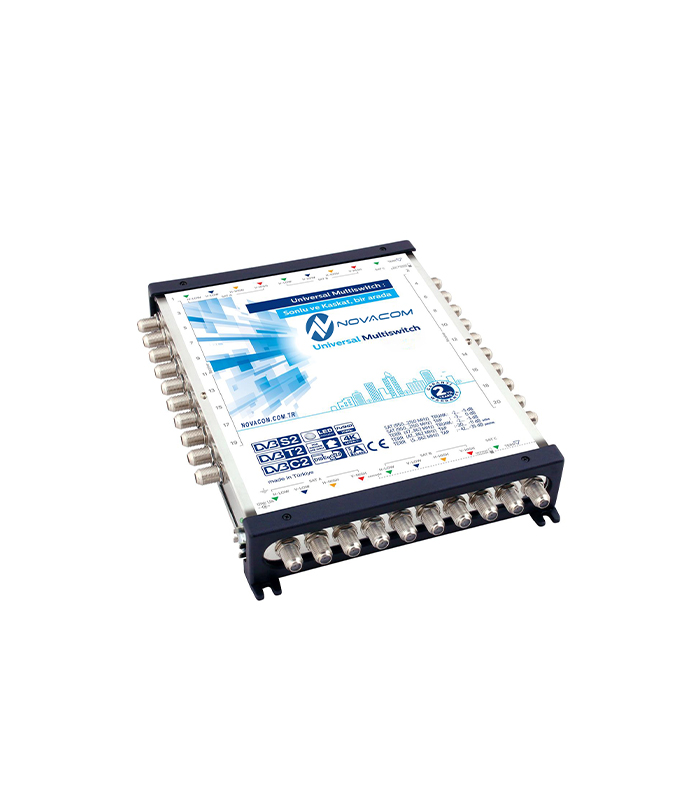

NovacomNMS-10/20P Finite Cascade Multiswitch
Product Code: NMS-10/20P
20-output cascade multiswitch. Main path loss measured at maximum -5 dB, side outputs loss between -3 dB and 0 dB. In daisy-chain installations, the order of devices is important: when models with lower loss are positioned toward the end of the chain, level drop in the upper floors is minimized.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 20 |
| Insertion Loss (dB) | -2…-5 |
| Side Output Loss (dB) | -3…0 |
| Side Output Loss (dB) Passive | -42…-35 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 23x19x4 |
