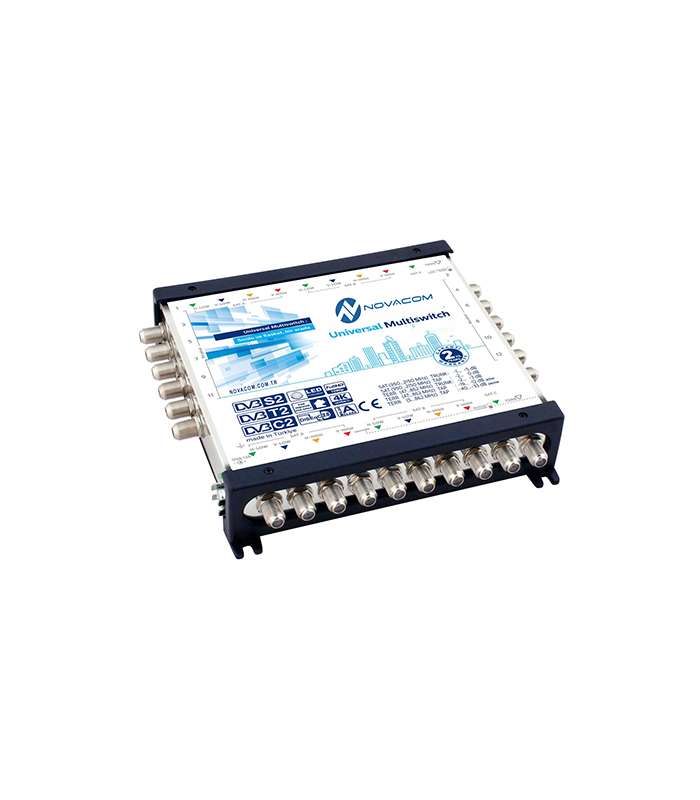

NovacomNMS-10/16S Finite Cascade Multiswitch
Product Code: NMS-10/16S
16-output finite cascade multiswitch. Shares the same loss values as the 12-output model but feeds four additional apartments; a single unit per column is sufficient for medium-sized apartment buildings where the number of apartments per block does not exceed 16. Passive side output loss ranges from -40 to -33 dB.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 16 |
| Insertion Loss (dB) | -1…-5 |
| Side Output Loss (dB) | -2…0 |
| Side Output Loss (dB) Passive | -40…-33 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 17x19x4 |
