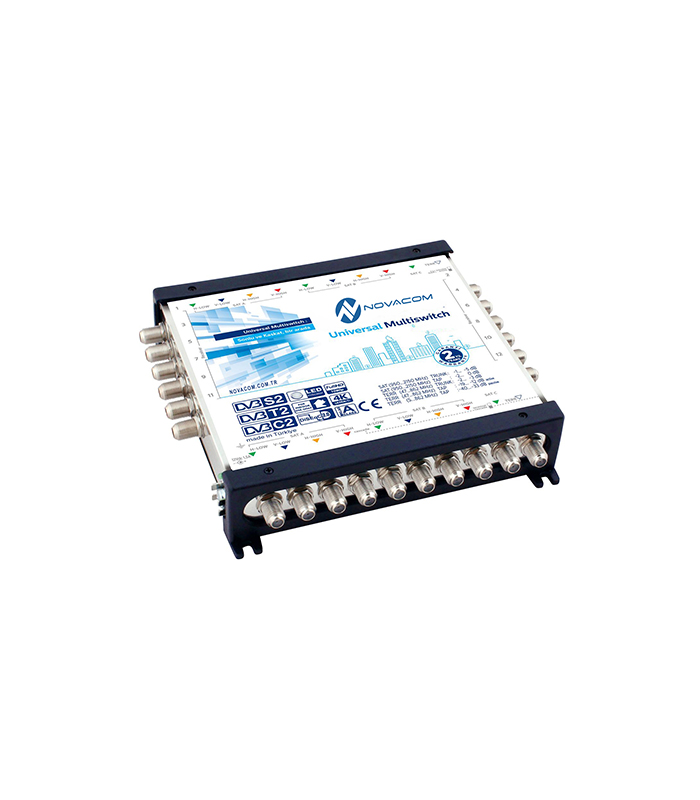

NovacomNMS-10/16P Finite Cascade Multiswitch
Product Code: NMS-10/16P
16-output cascade multiswitch. In four-storey blocks with four apartments per floor, a single unit covers that section and passes the signal to the upper section. Passive side output loss ranges from -40 to -33 dB, isolation is above 30 dB. If the cascade output is not used, a 75 ohm termination connector must be installed; otherwise reflections will occur.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 16 |
| Insertion Loss (dB) | -1…-5 |
| Side Output Loss (dB) | -2…0 |
| Side Output Loss (dB) Passive | -40…-33 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 17x19x4 |
