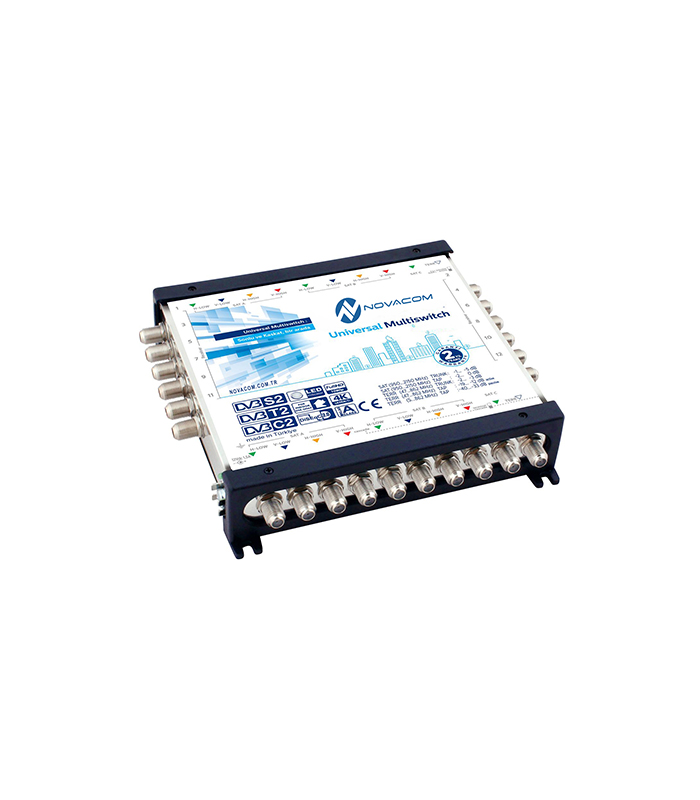

NovacomNMS-10/12P Passive Cascade Multiswitch
Product Code: NMS-10/12P
12-output cascade multiswitch. When used as a device in the middle of the chain, it distributes to its own units and also carries the signal to the upper tier. Main path loss ranges from -1 to -5 dB; each device in the chain adds this loss to the total budget. Isolation value is above 30 dB; this value ensures that commands from one unit do not affect neighboring units.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 12 |
| Insertion Loss (dB) | -1…-5 |
| Side Output Loss (dB) | -2…0 |
| Side Output Loss (dB) Passive | -40…-33 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 17x19x4 |
