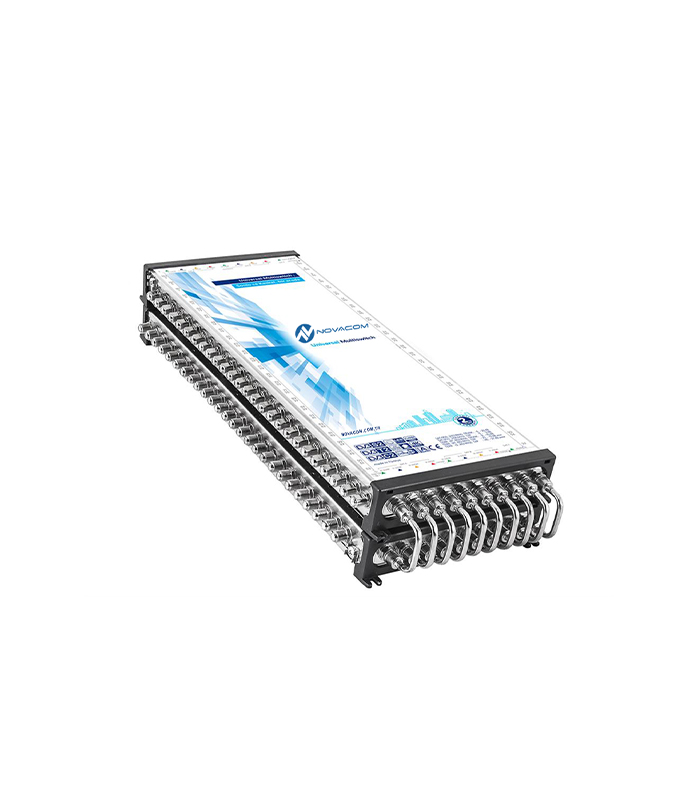

NovacomNMS-10/104S Passive Multiswitch
Product Code: NMS-10/104S
104 output (2x52) passive multiswitch; the largest model in the series. Main path loss ranges from -6 to -22 dB, passive branch output loss ranges from -45 to -37 dB. System design at this scale must be performed with calculation spreadsheets, and the expected level for each output must be calculated in advance.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Inputs | 9IF+1Terr |
| Auxiliary Outputs | 104(2x52) |
| Insertion Loss (dB) | -6…-22 |
| Side Output Loss (dB) | -5…-3 |
| Side Output Loss (dB) Passive | -45…-37 |
| Isolation | >30dB |
| Return Loss | >10dB |
| Output Level | 100 dBμV, 92 dBμV |
| LNB Power Supply | 12Vdc / 1500 mA |
| Satellite Current | 40 mA |
| Satellite Receiver Commands | DiSEqC 2.0 / 13V, 18V, 13V+22KHz, 18V+22KHz |
| Dimensions BxExY (cm) | 455x190x83 |
