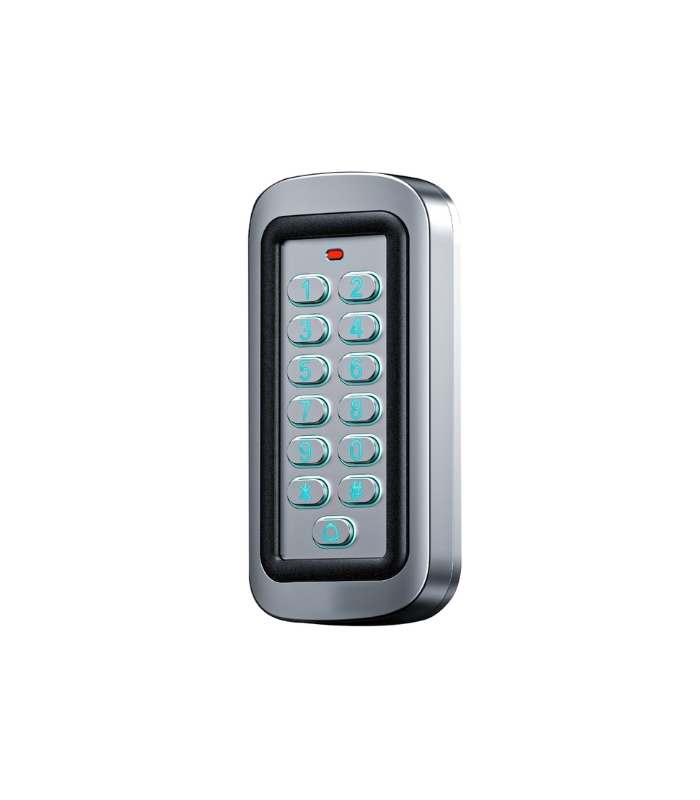

NovacomNC-MSWP25 Metal PIN Card Reader
Product Code: NC-MSWP25
IP68 fully protected metal PIN reader; reads both EM and MF cards. Operating range of -45 to +60 °C enables use at exterior doors in severe winter conditions. 2-5 cm read range, 0-99 second door release adjustment, and electric lock output up to 1 A.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Card Type | EM / MF |
| Protection Class | IP68 (Full Protection) |
| Reading Range | 2-5 cm |
| Operating Voltage | DC 12V |
| Static Electricity Consumption | ≤30mA |
| Door Opening Time | 0-99 seconds (Adjustable) |
| Electric Lock Output | ≤1A |
| Operating Temperature | -45°C ~ +60°C |
