Inverto

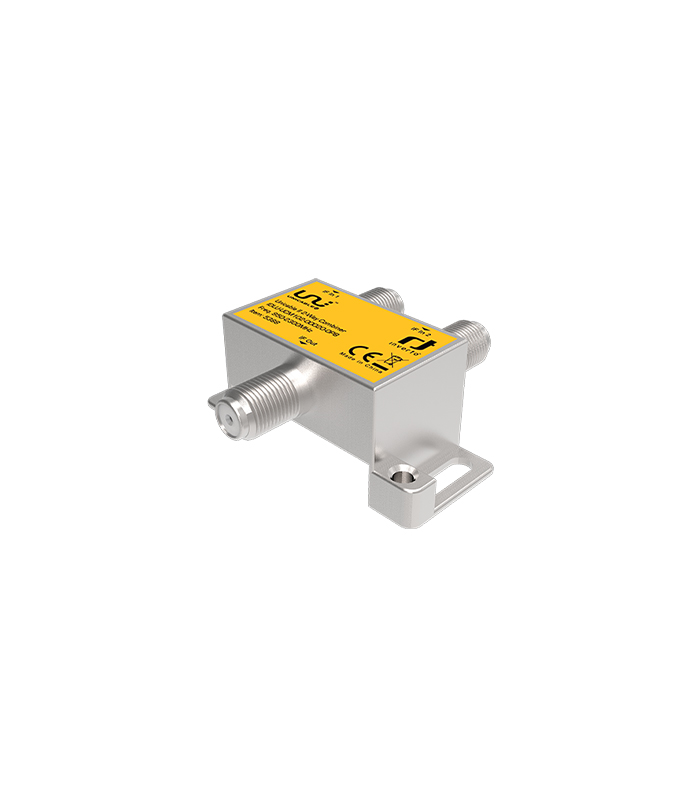

Inverto Unicable II 950-2300MHz 2 Way Combiner
Dual-band combiner operating in the 950-2300 MHz range. Combines two F-type inputs into a single output, operates at 75 Ω impedance, and functions between -30 and +60 °C. Used in Unicable installations where two lines from different sources need to be reduced to a single cable.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Frequency Range | 950 MHz ~ 2300 MHz |
| Inputs | 2x F-type, female |
| Output | 1x F-type, female |
| Impedance | 75 Ω |
| Operating Temperature | -30° C ~ +60° C |
| Weight | 39g |
| Dimensions | 58.5 mm x 50 mm x 16.3 mm |
