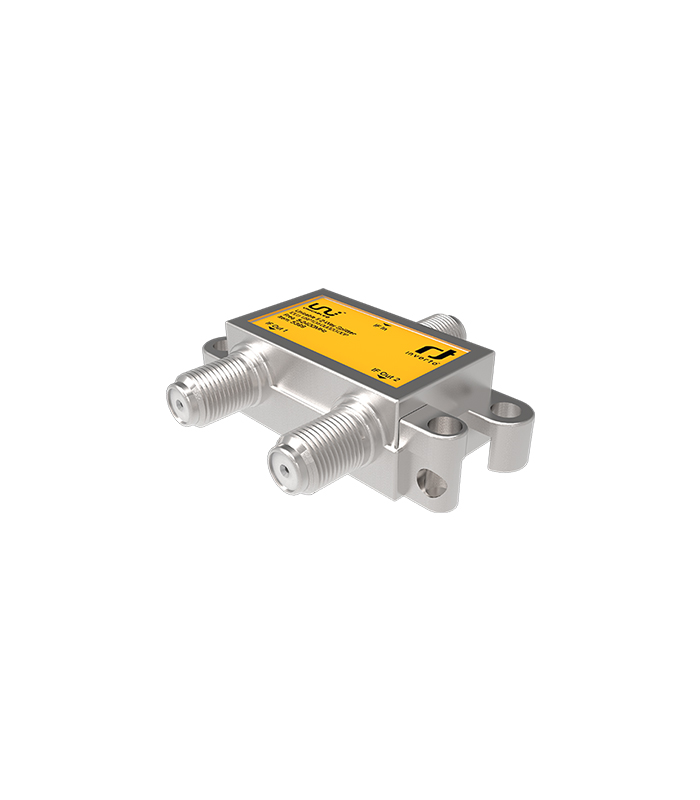

Inverto Unicable II 5-2400 TV Splitter
5-2400 MHz TV splitter for Unicable II systems. Splits one F-type input into two outputs; port-to-port isolation is minimum 16 dB. The splitter used in Unicable lines must be DC-passing; standard TV splitters block the supply voltage and prevent system operation.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Frequency Range | 5 MHz - 2400 MHz |
| Inputs | 1 x F type, female |
| Output | 2x F-type, female |
| Isolation Between Ports | 16 dB min. |
| Input Return Loss | -8 dB max. |
| Output Return Loss | -8 dB max. |
| Impedance | 75 Ω |
| Operating Temperature | -30° C ~ +60° C |
| Weight | 40 g |
| Dimensions | 58 mm x 50 mm x 16 mm |
