Inverto

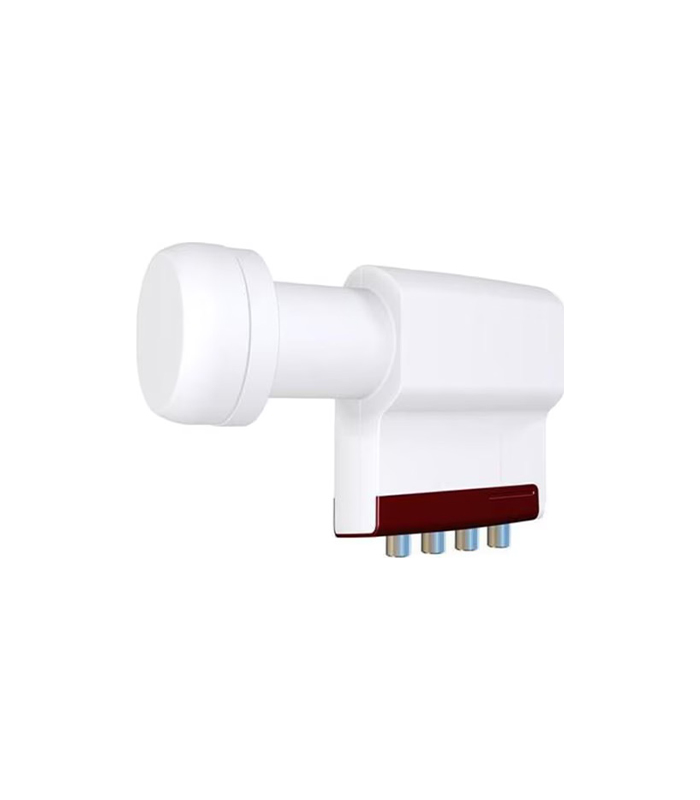

Inverto Red Extend Quad
Red Extend series quad LNB with four outputs. Extended frequency range facilitates reception of neighboring satellites from the same dish. With its four independent outputs, it feeds four receivers; eliminates the need for a multiswitch in residential and small office installations.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Low Input Frequency Range | 10.7 ~ 11.7 GHz |
| Low Output Frequency Range | 950 ~ 1950 MHz |
| Low Band LO Frequency | 9.75 GHz |
| High Input Frequency Range | 11.7 ~ 12.75 GHz |
| High Output Frequency Range | 1100 ~ 2150 MHz |
| High Band LO Frequency | 10.6 GHz |
| Noise Figure | Typical 0.3 dB (Max. 0.7 dB) |
| LO Initial Accuracy | Max. +/- 1.0 MHz |
| LO Temperature Deviation | Max. +/- 3.0 MHz |
| Operating Temperature | -30° C ~ +60° C |
| Impedance | 75 Ω |
| Weight | 243g |
