Products / Central TV and Satellite Systems / Inverto / Inverto Power Inserter 18V 5-2400Mhz (Without Adapter)
Inverto

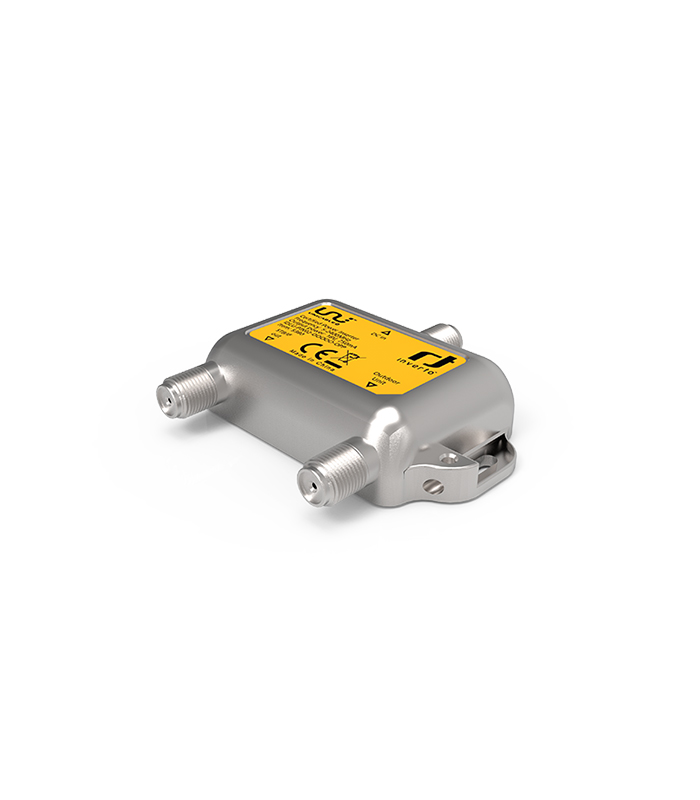

Inverto Power Inserter 18V 5-2400Mhz (Without Adapter)
Power inserter that supplies 18 V power to Unicable lines. Operates in the 5-2400 MHz range, has 19 V/1 A DC input and separate ODU to STB connections. Provides external LNB power supply when the receiver cannot provide it or the supply is insufficient; adapter is supplied separately.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Frequency Range | 5 MHz - 2400 MHz |
| DC Input | 19V/1A, 1x F type, female |
| ODU Input (IF) | : 1x F type, female |
| STB Output (IF) | : 1x F type, female |
| Maximum Current Pass-Through | 750 mA |
| Output Voltage | 17 V (Input @19V, 1.0A) |
| Operating Temperature | -30° C ~ +60° C |
| Weight | 81g |
| Dimensions | 65 mm x 75 mm x 17.3 mm |
