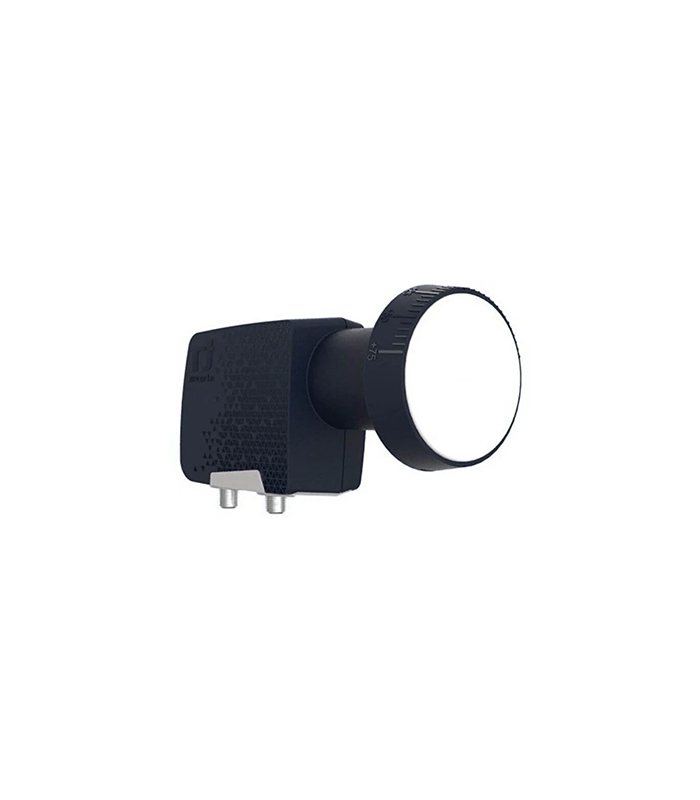

Inverto New Premium Twin LNB
Inverto

Inverto New Premium Twin LNB

Satellite Antenna & LNB

Dual independent output Inverto Premium LNB; operates with a noise figure of 0.7 dB. Can feed two separate receivers or a dual-tuner receiver. Since the outputs are independent from each other, changing channels on one receiver does not affect the other. Each output performs its own polarity and band selection according to the voltage and tone commands from the receiver.

Technical specifications

Input Frequency10.7 - 12.75 GHz
Output Frequency950 MHz ~ 1950 MHz
Low Band LO Frequency9.75 GHz
High Band LO Frequency10.6 GHz
Noise0.7 dB
LO Temperature Deviation± 800 kHz max.
Conversion GainMin. 55 dB
Power Consumption210 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature-30 °C ~ +60 °C
Impedance75 Ω
Weight218 g
