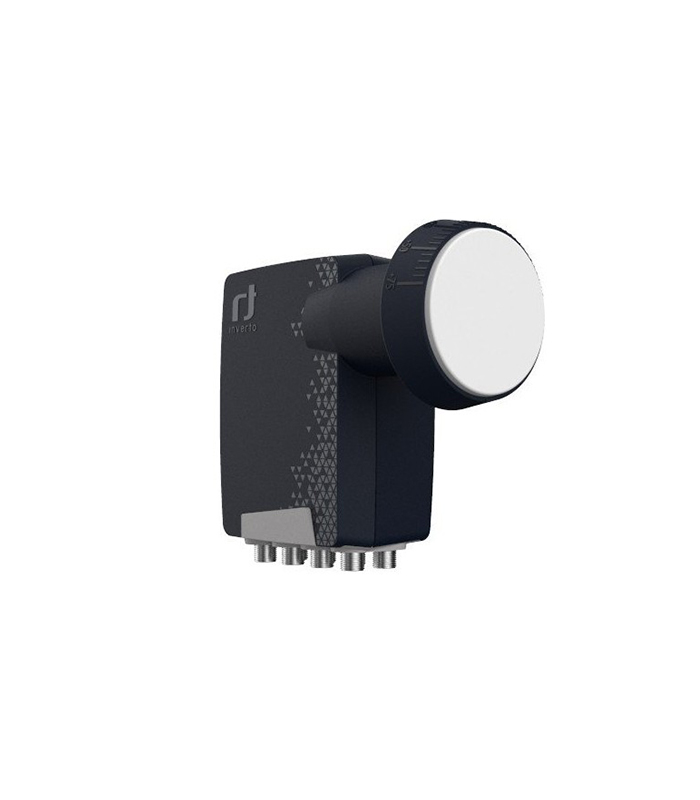

Inverto New Premium Octo LNB
Inverto

Inverto New Premium Octo LNB

Satellite Antenna & LNB

Eight-output Inverto Premium LNB with independent outputs. Provides direct feed to up to eight receivers; offers a solution without requiring multiswitch installation in small boarding houses, offices, and multi-room villas. The 0.7 dB noise figure is maintained across all eight outputs. When all eight outputs are utilized, the number of cables from the dish increases to eight; cable ducting must be planned accordingly.

Technical specifications

Input Frequency10.7 - 12.75 GHz
Output Frequency950 MHz ~ 1950 MHz
Low Band LO Frequency9.75 GHz
High Band LO Frequency10.6 GHz
Noise0.7 dB
LO Temperature Deviation± 800 kHz max.
Conversion GainMin. 55 dB
Power Consumption210 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature-30 °C ~ +60 °C
Impedance75 Ω
Weight299 g
