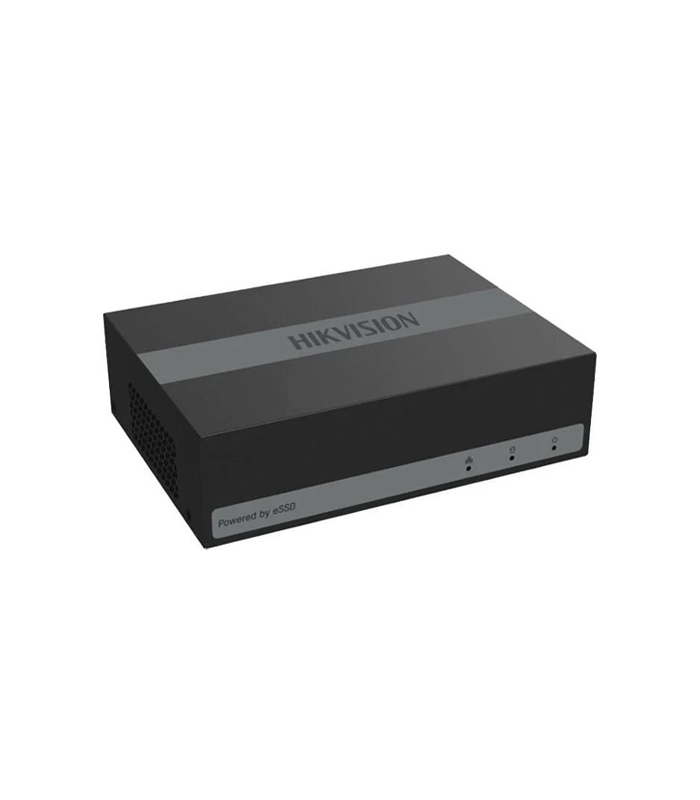

Hikvision DS-E08HGHI-D 8-Channel E-DVR Recording Device
8-channel Hikvision E-DVR; offers 1080p Lite, 720p and 720p Lite recording options with H.265 Pro compression. HDMI and VGA outputs support maximum 1080p. Since the E series is cost-focused, it does not strain the budget in small shop and warehouse installations.
Bu cihaza ne kadar kayıt sığar?
Estimate how many TB you need, or how many days your disk will hold. The result is a range, not an exact value.
Calculated with a typical bitrate range of 2–6 Mbit/s (H.265, 15 fps). Total incoming bandwidth: 16–48 Mbit/s. Disk capacity uses the manufacturer’s TB (1 TB = 1000 GB). Real usage depends on scene activity; for an exact figure enter the bitrate shown on the recorder or take a 24-hour sample recording. The calculation uses the whole disk; if you want to keep part of it free, divide the result by (1 − margin), e.g. by 0.9 for a 10% margin.
Technical specifications
| Video Input and Output | 8 channel video input HDMI and VGA video outputs, supports maximum 1080p resolution |
| Compression and Recording | H.265 Pro/H.265 video compression technology capable of encoding at 1080p Lite, 720p and 720p Lite resolutions |
| Storage | Built-in 1024 GB eSSD (960 GB usable) storage capacity high data rate and durability thanks to eSSD technology |
| Low Power Consumption | ≤ 6.2 W (with eSSD) |
| Power Supply | 12V DC, 1A |
| Operating Temperature | -10 °C to 45 °C |
| Operating Humidity | to |
| Dimensions | 151 x 121 x 46 mm |
| Weight | ≤ 0.5 kg (with eSSD) |
