Products / Fire Detection Systems / Esser / Esser 808630.10 RZT 24 V Conventional Zone Transponder (4 Zones)
Esser

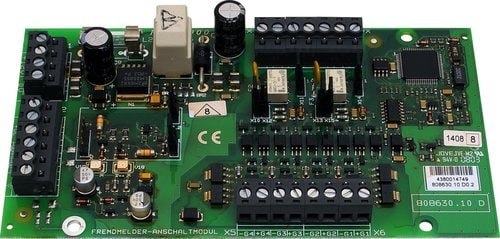

Esser 808630.10 RZT 24 V Conventional Zone Transponder (4 Zones)
Product Code: 808630.10
Zone transponder developed for renovation projects, operates as an independent element on esserbus and accepts conventional detectors and buttons from other manufacturers on four zone inputs. In this version, the voltage of four zones can be adjusted to 24 V via an internal DC/DC module; no separate reset module is required. Two relay outputs remain for general control. Enables transition to an addressable control panel without removing existing wiring.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | esserbus |
| Operating Voltage | 10,5 … 15 V DC |
| Operating Temperature | -10 °C … +50 °C |
