Products / Fire Detection Systems / Esser / Esser 808623.40 Special Detector Transponder (Adjustable Reset)
Esser

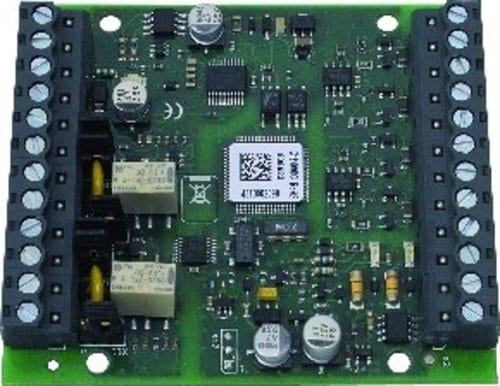

Esser 808623.40 Special Detector Transponder (Adjustable Reset)
Product Code: 808623.40
Transponder module designed for connecting special detectors to the addressed loop and executing reset operations. Evaluates pre-alarm, fault, and alarm information separately; by connecting input and output together, arrival or reset of a signal can momentarily operate the detector's reset input. To accommodate different reset behaviors, suppression duration up to 255 seconds can be assigned to inputs.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | esserbus |
| Operating Voltage | 10 … 28 V DC |
| IP Rating | IP40 |
| Operating Temperature | -10 °C … +50 °C |
