Products / Fire Detection Systems / Esser / Esser 808623.10 Isolated UniVario Detector Interface Transponder
Esser

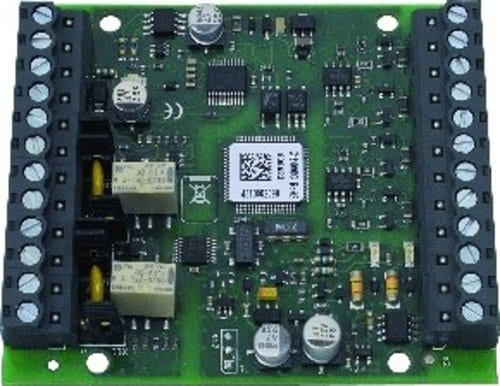

Esser 808623.10 Isolated UniVario Detector Interface Transponder
Product Code: 808623.10
Isolated interface module connecting up to two industrial detectors from the UniVario family to the esserbus loop. Detectors are powered from the 9 V DC group voltage input; line monitoring is provided by the terminating element EOL-UV plugged into the detector socket. The module has two relay outputs with optional monitoring capability and requires external power supply for operation. Enables individual addressing of field detectors in harsh production environments.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | esserbus |
| Operating Voltage | 10 … 28 V DC |
| IP Rating | IP40 |
| Operating Temperature | -10 °C … +50 °C |
